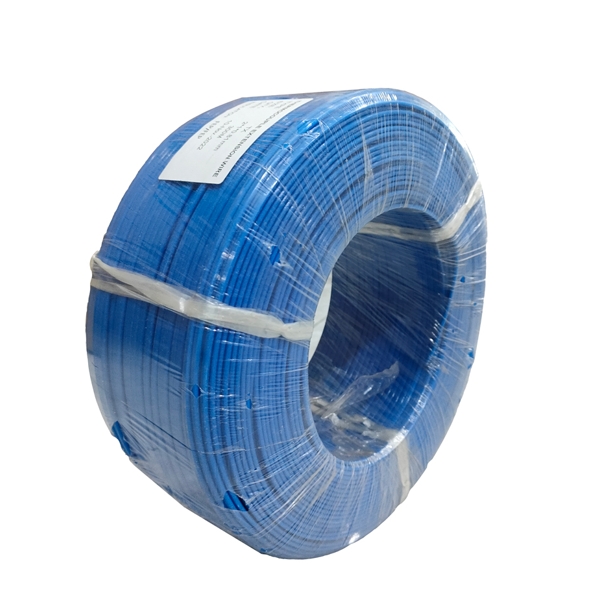

Our Type S Compensating Cable with copper-nickel alloy conductors is all about precision and reliability in high-temperature industrial setups. Designed to connect Type S Thermocouple s (platinum-rhodium), this cable delivers top-tier accuracy with IEC 60584-2 Class 1 standards. The PVC insulation handles temperatures from -20°C to +105°C, making it a solid choice for moderate conditions. Rated for 300V, it’s built for tough industrial environments. The twisted pair design and optional tinned copper shielding keep electrical noise low, ensuring clean, accurate data. With stranded conductors for flexibility, this cable is perfect for complex installations where precision is non-negotiable.
The thermocouple cable market is growing strong, driven by industries like petrochemical, aerospace, and power generation that demand high-accuracy temperature monitoring. Compensating cables are gaining popularity for their cost-effectiveness in connecting thermocouples over long distances while maintaining precision. The push for automation and real-time data systems is increasing the need for low-noise, high-accuracy cables. PVC insulation remains a go-to for its durability, affordability, and flame-retardant properties, meeting standards like IEC 60332-1. Our Type S cable aligns perfectly with these trends, offering Class 1 accuracy and compliance with IEC 60584-3 and ANSI MC96.1 for reliable performance.
| Thermocouple Type | Compensating Wire Type | Usage | EMF Standard | Precision Grade | General Grade | |||
| Temperature /℃ | Value /μV | Tolerance μV | EMF Range μV | Tolerance μV | EMF Range μV | |||
| K | KX,KCA or KCB | G | -25 | -968 | ±40 | -924~-1012 | ±80 | -880~-1 056 |
| 100 | 4096 | 4052~4140 | 4 008~4 184 | |||||
| H | -25 | -968 | ±40 | -924~-1012 | ±88 | -880~-1 056 | ||
| 100 | 4096 | 4052~4140 | 4 008~4 184 | |||||
| 200 | 8138 | 8094~8182 | 8 050~8 226 | |||||
| J | JX | G | -25 | -1 239 | ±62 | -1177~-1301 | ±123 | -1 116~-1 362 |
| 100 | 5269 | 5207~5331 | 5 146~5 392 | |||||
| H | -25 | -1239 | ±62 | - 177~-1301 | ±123 | -1 116~-1 362 | ||
| 100 | 5269 | 5207~5331 | 5 146~5 392 | |||||
| 200 | 10779 | 10717~10841 | 10 656~10 902 | |||||
| E | EX | G | -25 | -1432 | ±81 | -1351~-1513 | ±138 | -1 294~-1 570 |
| 100 | 6 319 | 6238~ 6400 | 6 181~6 457 | |||||
| H | -25 | -1432 | ±81 | -1351~- 1513 | ±138 | -1 294~-1 570 | ||
| 100 | 6319 | 6238~6400 | 6 181~6 457 | |||||
| 200 | 13421 | 13340~13502 | 13 283~13 559 | |||||
| T | TX | G | -25 | -940 | ±30 | -910~-970 | ±60 | -1850 |
| 100 | 4279 | 4249~4309 | 4189~4339 | |||||
| H | -25 | -940 | ±48 | -892~-988 | ||||
| 100 | 4279 | 4231~4327 | ||||||
| 200 | 9288 | 9240~9336 | ||||||
| N | NX or NC | G | -25 | -646 | ±43 | -603~-689 | ±86 | -560~-732 |
| 100 | 2774 | 2731~2817 | 2 688~2 860 | |||||
| H | -25 | -646 | ±43 | -603~-690 | ±86 | -560~-732 | ||
| 100 | 2774 | 2731~2817 | 2 688~2 860 | |||||
| 200 | 5913 | 5870~5956 | 5 827~5 999 | |||||
| SorR | SC or RC | G | 100 | 646 | ±30 | 616~676 | ±60 | 586~706 |
| H | 100 | 646 | - | - | ±60 | 586~706 | ||
| 200 | 11441 | - | - | 1.381~1 501 | ||||
This cable is a powerhouse for high-precision applications. Petrochemical plants use it to monitor reactors and pipelines, ensuring accurate temperature data over long runs. Aerospace relies on it for jet engine testing and thermal management systems, where precision is critical. Power generation facilities trust it for boilers and turbines, delivering clean signals in noisy environments. Steel manufacturing benefits from its accuracy in high-temperature furnaces and rolling mills. The stranded conductors make it easy to route through tight spaces, while the optional tinned copper shielding ensures noise-free performance, keeping your temperature data spot-on in demanding setups.
Parameter | Our Type S Compensating Cable | Competitor A | Competitor B |
|---|---|---|---|
Conductor Material | Copper-Nickel Alloy (Type S) | Copper-Nickel Alloy | Copper-Nickel Alloy |
Insulation | PVC | Silicone | PTFE |
Temperature Range | -20°C to +105°C | -30°C to +100°C | -40°C to +200°C |
Accuracy | IEC 60584-2 Class 1 | Class 2 | Class 1 |
Shielding | Optional Tinned Copper Braid | None | Aluminum Foil |
Flame Retardancy | IEC 60332-1 Compliant | Non-Compliant | IEC 60332-3 Compliant |
Flexibility | High (Stranded Conductors) | Moderate | Low |
Certifications | IEC 60584-3, ANSI MC96.1 | ANSI MC96.1 | IEC 60584-3 |
Applications | High-Precision Industrial Systems | General Industrial | High-Temp Systems |
Our Type S Compensating Cable stands out for its precision and durability. With IEC 60584-2 Class 1 accuracy, it delivers more accurate readings than lower-class alternatives, ensuring your data is always reliable. The optional tinned copper shielding and twisted pair design outperform unshielded or basic foil-shielded cables, providing cleaner signals in noisy environments. The stranded conductors and PVC insulation offer better flexibility than stiffer materials, making installation a breeze in complex setups. Certified to IEC 60584-3 and ANSI MC96.1, and rated for 300V, our cable meets stringent standards while offering flame-retardant safety per IEC 60332-1. It’s the ideal choice for high-precision industrial monitoring.
Choose our cable for a flexible, accurate, and noise-resistant solution that keeps your temperature measurements on point, no matter the challenge.
About Us:
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships
We support all kinds of testing:
FAQs:
What is the Type S Compensating Cable used for?
Connects Type S thermocouples to instrumentation for precise temperature measurements in high-temperature industrial settings.What materials are used in this cable?
Copper-nickel alloy conductors, PVC insulation, and an optional tinned copper braid for added protection.What’s the temperature range for this cable?
Rated for -20°C to +105°C, suitable for moderate industrial environments.What does IEC 60584-2 Class 1 accuracy mean?
Ensures high-precision temperature readings with minimal deviation for Type S thermocouples.What industries use this Type S compensating cable?
Petrochemical, aerospace, power generation, and steel manufacturing.Does it reduce electrical noise?
Yes, twisted pair design and optional tinned copper shielding minimize interference for clean signals.Does it meet industry standards?
Complies with IEC 60584-3 and ANSI MC96.1 for performance and color coding.Is it flexible for complex installations?
Yes, stranded conductors and PVC insulation ensure flexibility for tight spaces.
