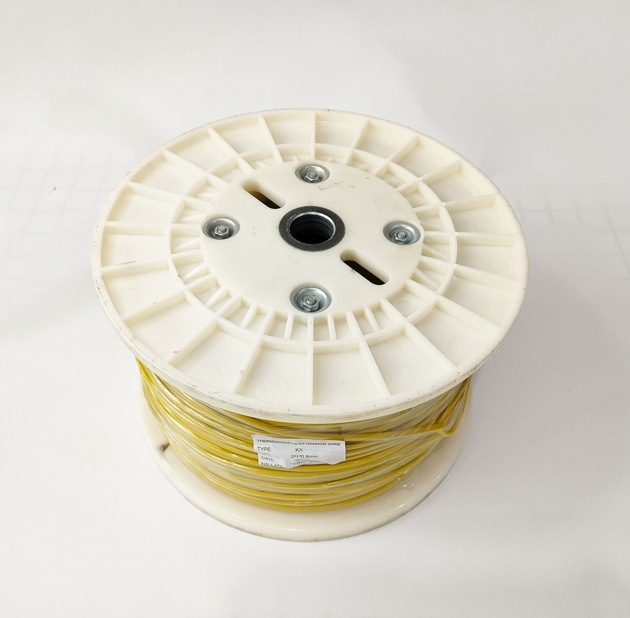

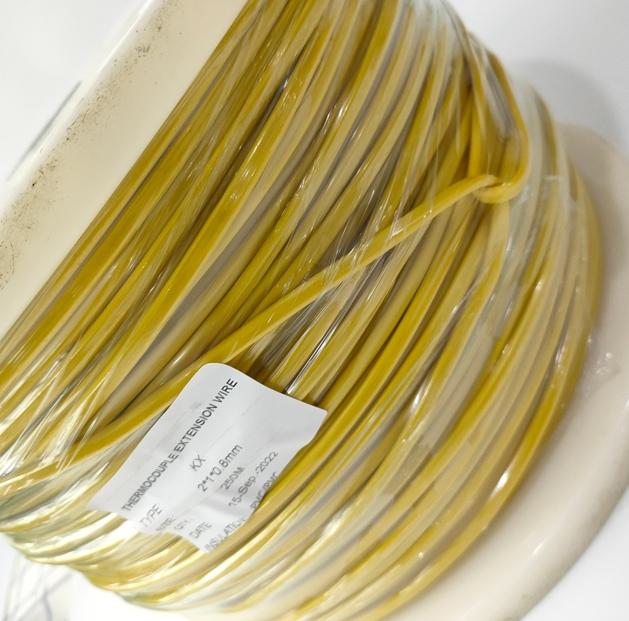

Our Type K Compensating Cable with Chromel-Alumel conductors and ANSI color-coding is designed for precision and ease in industrial temperature monitoring. Built to connect Type K Thermocouple s, this cable delivers accurate readings with IEC 60584-2 Class 1 accuracy. The PVC insulation handles temperatures from -20°C to +105°C, while the 100m spool makes it perfect for large-scale setups. ANSI color-coding (yellow positive, red negative) ensures quick and error-free installation. With a twisted pair design and optional tinned copper shielding, it keeps electrical noise low for clean signals. Rated for 300V, this cable is a reliable choice for tough industrial environments.
The thermocouple cable market is growing strong, driven by industries like petrochemical, steel, and power generation that need reliable temperature monitoring. Compensating cables are gaining popularity for their cost-effectiveness and accuracy in connecting thermocouples over long distances. ANSI color-coding is a big plus for North American markets, simplifying installation and reducing errors. As automation and precision monitoring rise, low-noise cables with robust insulation are in demand. PVC remains a go-to for its balance of durability and affordability in moderate-temperature settings. Our Type K cable meets IEC 60584-3 and ANSI MC96.1 standards, fitting perfectly into these industry trends.
| Thermocouple Type | Compensating Wire Type | Usage | EMF Standard | Precision Grade | General Grade | |||
| Temperature /℃ | Value /μV | Tolerance μV | EMF Range μV | Tolerance μV | EMF Range μV | |||
| K | KX,KCA or KCB | G | -25 | -968 | ±40 | -924~-1012 | ±80 | -880~-1 056 |
| 100 | 4096 | 4052~4140 | 4 008~4 184 | |||||
| H | -25 | -968 | ±40 | -924~-1012 | ±88 | -880~-1 056 | ||
| 100 | 4096 | 4052~4140 | 4 008~4 184 | |||||
| 200 | 8138 | 8094~8182 | 8 050~8 226 | |||||
| J | JX | G | -25 | -1 239 | ±62 | -1177~-1301 | ±123 | -1 116~-1 362 |
| 100 | 5269 | 5207~5331 | 5 146~5 392 | |||||
| H | -25 | -1239 | ±62 | - 177~-1301 | ±123 | -1 116~-1 362 | ||
| 100 | 5269 | 5207~5331 | 5 146~5 392 | |||||
| 200 | 10779 | 10717~10841 | 10 656~10 902 | |||||
| E | EX | G | -25 | -1432 | ±81 | -1351~-1513 | ±138 | -1 294~-1 570 |
| 100 | 6 319 | 6238~ 6400 | 6 181~6 457 | |||||
| H | -25 | -1432 | ±81 | -1351~- 1513 | ±138 | -1 294~-1 570 | ||
| 100 | 6319 | 6238~6400 | 6 181~6 457 | |||||
| 200 | 13421 | 13340~13502 | 13 283~13 559 | |||||
| T | TX | G | -25 | -940 | ±30 | -910~-970 | ±60 | -1850 |
| 100 | 4279 | 4249~4309 | 4189~4339 | |||||
| H | -25 | -940 | ±48 | -892~-988 | ||||
| 100 | 4279 | 4231~4327 | ||||||
| 200 | 9288 | 9240~9336 | ||||||
| N | NX or NC | G | -25 | -646 | ±43 | -603~-689 | ±86 | -560~-732 |
| 100 | 2774 | 2731~2817 | 2 688~2 860 | |||||
| H | -25 | -646 | ±43 | -603~-690 | ±86 | -560~-732 | ||
| 100 | 2774 | 2731~2817 | 2 688~2 860 | |||||
| 200 | 5913 | 5870~5956 | 5 827~5 999 | |||||
| SorR | SC or RC | G | 100 | 646 | ±30 | 616~676 | ±60 | 586~706 |
| H | 100 | 646 | - | - | ±60 | 586~706 | ||
| 200 | 11441 | - | - | 1.381~1 501 | ||||
This cable is a workhorse for industrial applications. Petrochemical plants use it to monitor reactors and pipelines, ensuring accurate temperature data over long runs. Steel manufacturing relies on it for furnaces and rolling mills, where precision is critical. Power generation facilities trust it for boiler and turbine monitoring, with the 100m spool simplifying large installations. HVAC systems benefit from its flexibility and clear ANSI color-coding for quick setup in complex layouts. The optional tinned copper shielding makes it ideal for noisy environments, while the stranded conductors and PVC insulation ensure easy routing and durability in demanding conditions.
Parameter | Our Type K Compensating Cable | Competitor A | Competitor B |
|---|---|---|---|
Conductor Material | Chromel-Alumel Compensating Alloy | Chromel-Alumel Alloy | Chromel-Alumel Alloy |
Insulation | PVC | Silicone | PTFE |
Temperature Range | -20°C to +105°C | -30°C to +100°C | -40°C to +200°C |
Color Coding | ANSI MC96.1 (Yellow/Red) | Non-Standard | IEC 60584-3 |
Shielding | Optional Tinned Copper Braid | None | Aluminum Foil |
Spool Length | 100m | 50m | 75m |
Accuracy | IEC 60584-2 Class 1 | Class 2 | Class 1 |
Flexibility | High (Stranded Conductors) | Moderate | Low |
Certifications | IEC 60584-3, ANSI MC96.1 | ANSI MC96.1 | IEC 60584-3 |
Applications | Industrial, Large-Scale Systems | General Industrial | High-Temp Systems |
Our Type K Compensating Cable stands out for its precision and practicality. The ANSI color-coding (yellow/red) makes installation a breeze compared to non-standard or less clear alternatives, saving time and reducing errors. The 100m spool offers more length than shorter options, perfect for large-scale projects. With IEC 60584-2 Class 1 accuracy, it delivers more precise readings than lower-class cables. The optional tinned copper shielding outperforms unshielded or basic foil-shielded cables, ensuring cleaner signals in noisy settings. The stranded conductors and PVC insulation provide better flexibility and durability than stiffer or less robust materials. Certified to IEC 60584-3 and ANSI MC96.1, and rated for 300V, our cable is the go-to for reliable, large-scale temperature monitoring.
Choose our cable for an accurate, easy-to-install, and noise-resistant solution that keeps your industrial operations running smoothly, no matter the scale.
About Us:
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships
We support all kinds of testing:
FAQs:
What is the Type K Compensating Cable used for?
Connects Type K thermocouples to instrumentation for accurate temperature measurements in high-temperature industrial settings.What materials are used in this cable?
Chromel-Alumel compensating alloy conductors, PVC insulation, and an optional tinned copper braid for protection.What’s the temperature range for this cable?
Rated for -20°C to +105°C, suitable for moderate industrial environments.Is the cable color-coded?

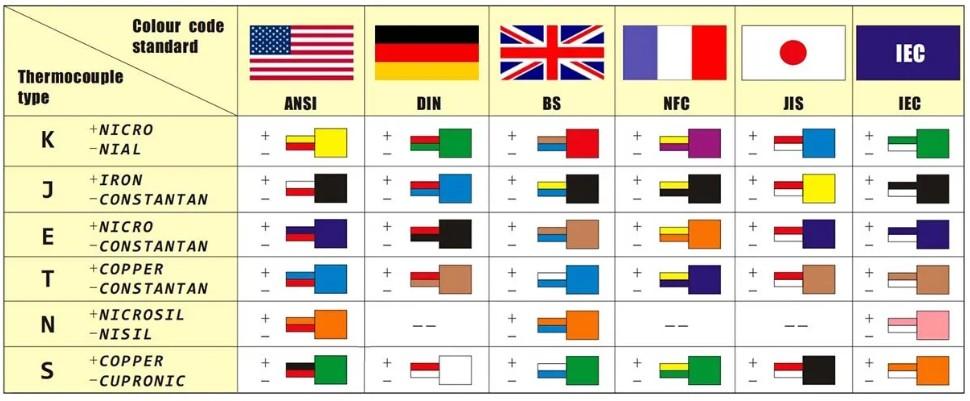

Yes, it follows ANSI MC96.1 color coding (yellow positive, red negative) for easy identification.What industries use this Type K compensating cable?
Petrochemical, steel manufacturing, power generation, and HVAC industries.Does it handle electrical noise?
Yes, twisted pair design and optional tinned copper shielding minimize interference for clean signals.Does it meet industry standards?
Complies with IEC 60584-3 and ANSI MC96.1 for performance and color coding.Why is it supplied in a 100m spool?
The 100m spool offers convenience for large installations and reduces splicing needs.
