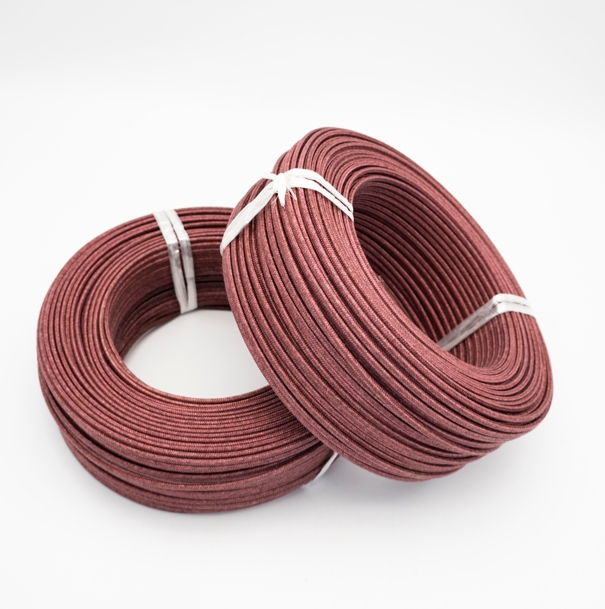

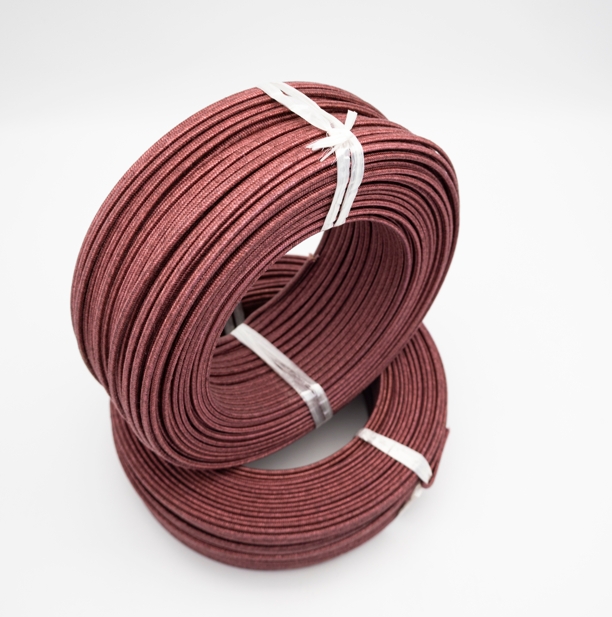

Our Low-Noise Type T Thermocouple Extension Cable is all about precision in noisy environments. Built for Type T thermocouples (copper-constantan), this cable delivers accurate temperature readings with minimal interference, thanks to its twisted pair design and aluminum Mylar shielding with a drain wire. With a max resistance of 100 ohms, it ensures clean signals. The PVC insulation is flexible, moisture-resistant, and rated for -20°C to +105°C, making it perfect for moderate conditions. At 300V, it’s tough enough for industrial setups, while the stranded conductors make it a breeze to install in tight spaces. This cable is your go-to for reliable data in sensitive applications.
The thermocouple extension cable market is growing fast, driven by industries like food processing, pharmaceuticals, and HVAC, where precision is non-negotiable. Low-noise cables are in high demand as automation and real-time monitoring systems become more common, especially in environments with heavy electrical interference. PVC insulation remains a top pick for its affordability, flexibility, and moisture resistance, perfect for humid or outdoor settings. The push for higher accuracy and compliance with standards like IEC 60584-3 and ANSI MC96.1 is shaping the market. Our Type T cable nails these trends, offering low-noise performance and Class 1 accuracy for critical applications.
| Thermocouple Type | Compensating Wire Type | Usage | EMF Standard | Precision Grade | General Grade | |||
| Temperature /℃ | Value /μV | Tolerance μV | EMF Range μV | Tolerance μV | EMF Range μV | |||
| K | KX,KCA or KCB | G | -25 | -968 | ±40 | -924~-1012 | ±80 | -880~-1 056 |
| 100 | 4096 | 4052~4140 | 4 008~4 184 | |||||
| H | -25 | -968 | ±40 | -924~-1012 | ±88 | -880~-1 056 | ||
| 100 | 4096 | 4052~4140 | 4 008~4 184 | |||||
| 200 | 8138 | 8094~8182 | 8 050~8 226 | |||||
| J | JX | G | -25 | -1 239 | ±62 | -1177~-1301 | ±123 | -1 116~-1 362 |
| 100 | 5269 | 5207~5331 | 5 146~5 392 | |||||
| H | -25 | -1239 | ±62 | - 177~-1301 | ±123 | -1 116~-1 362 | ||
| 100 | 5269 | 5207~5331 | 5 146~5 392 | |||||
| 200 | 10779 | 10717~10841 | 10 656~10 902 | |||||
| E | EX | G | -25 | -1432 | ±81 | -1351~-1513 | ±138 | -1 294~-1 570 |
| 100 | 6 319 | 6238~ 6400 | 6 181~6 457 | |||||
| H | -25 | -1432 | ±81 | -1351~- 1513 | ±138 | -1 294~-1 570 | ||
| 100 | 6319 | 6238~6400 | 6 181~6 457 | |||||
| 200 | 13421 | 13340~13502 | 13 283~13 559 | |||||
| T | TX | G | -25 | -940 | ±30 | -910~-970 | ±60 | -1850 |
| 100 | 4279 | 4249~4309 | 4189~4339 | |||||
| H | -25 | -940 | ±48 | -892~-988 | ||||
| 100 | 4279 | 4231~4327 | ||||||
| 200 | 9288 | 9240~9336 | ||||||
| N | NX or NC | G | -25 | -646 | ±43 | -603~-689 | ±86 | -560~-732 |
| 100 | 2774 | 2731~2817 | 2 688~2 860 | |||||
| H | -25 | -646 | ±43 | -603~-690 | ±86 | -560~-732 | ||
| 100 | 2774 | 2731~2817 | 2 688~2 860 | |||||
| 200 | 5913 | 5870~5956 | 5 827~5 999 | |||||
| SorR | SC or RC | G | 100 | 646 | ±30 | 616~676 | ±60 | 586~706 |
| H | 100 | 646 | - | - | ±60 | 586~706 | ||
| 200 | 11441 | - | - | 1.381~1 501 | ||||
This cable is a rockstar in precision-driven industries. In food processing, it ensures accurate temperature monitoring for freezers, ovens, and packaging lines. Pharmaceutical labs use it for sterile processes and climate-controlled storage, where even small deviations matter. HVAC systems rely on it for consistent readings in heating and cooling units, even in humid conditions. Research labs love it for experiments requiring clean data in electrically noisy environments. The flexible PVC and stranded conductors make it easy to route through complex setups, and the aluminum Mylar shield keeps interference at bay, ensuring your measurements stay spot-on.
Comparison Parameters Table
Parameter | Our Type T Extension Cable | Competitor A | Competitor B |
|---|---|---|---|
Conductor Material | Copper-Constantan (Type T) | Copper-Constantan | Copper-Constantan |
Insulation | PVC | Silicone | PTFE |
Temperature Range | -20°C to +105°C | -30°C to +100°C | -40°C to +200°C |
Shielding | Aluminum Mylar with Drain Wire | None | Foil Shield |
Max Resistance | 100 Ohm | 120 Ohm | 150 Ohm |
Accuracy | IEC 60584-2 Class 1 | Class 2 | Class 1 |
Moisture Resistance | Good (PVC) | Moderate (Silicone) | High (PTFE) |
Flexibility | High (Stranded Conductors) | Moderate | Low |
Certifications | IEC 60584-3, ANSI MC96.1 | ANSI MC96.1 | IEC 60584-3 |
Applications | Sensitive, Noisy Environments | General Industrial | High-Temp Environments |
Our Low-Noise Type T Thermocouple Extension Cable sets the standard for precision and reliability. The aluminum Mylar shielding with a drain wire and twisted pair design keeps noise lower than unshielded or basic foil-shielded cables, with a max resistance of 100 ohms for cleaner signals. The PVC insulation offers better moisture resistance and flexibility than silicone or less durable materials, making it ideal for humid or tight installations. With IEC 60584-2 Class 1 accuracy, it outperforms lower-class alternatives, and the 300V rating adds versatility for industrial use. Certified to IEC 60584-3 and ANSI MC96.1, our cable delivers the performance and durability you need for sensitive applications.
Choose our cable for a low-noise, accurate, and flexible solution that keeps your temperature data reliable, no matter the environment.
About Us:
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships
We support all kinds of testing:
FAQs:
What is the Low-Noise Type T Thermocouple Extension Cable used for?
Connects Type T thermocouples to instrumentation for precise temperature measurements in sensitive applications.What materials are used in this cable?
Copper-constantan conductors, PVC insulation, and an aluminum Mylar shield with a drain wire.What’s the temperature range for this cable?
Rated for -20°C to +105°C, suitable for moderate industrial environments.How does it achieve low noise?
Twisted pair design and aluminum Mylar shielding keep electrical interference to a minimum, with a max resistance of 100 ohms.What industries use this Type T extension cable?
Food processing, pharmaceuticals, HVAC, and laboratory research.Does it meet industry standards?
Complies with IEC 60584-3 and ANSI MC96.1 for accuracy and color coding.Is it flexible for tight installations?
Yes, stranded conductors and flexible PVC insulation make it easy to route in confined spaces.Can it handle humid environments?
Yes, the PVC insulation provides good moisture resistance for reliable performance.
