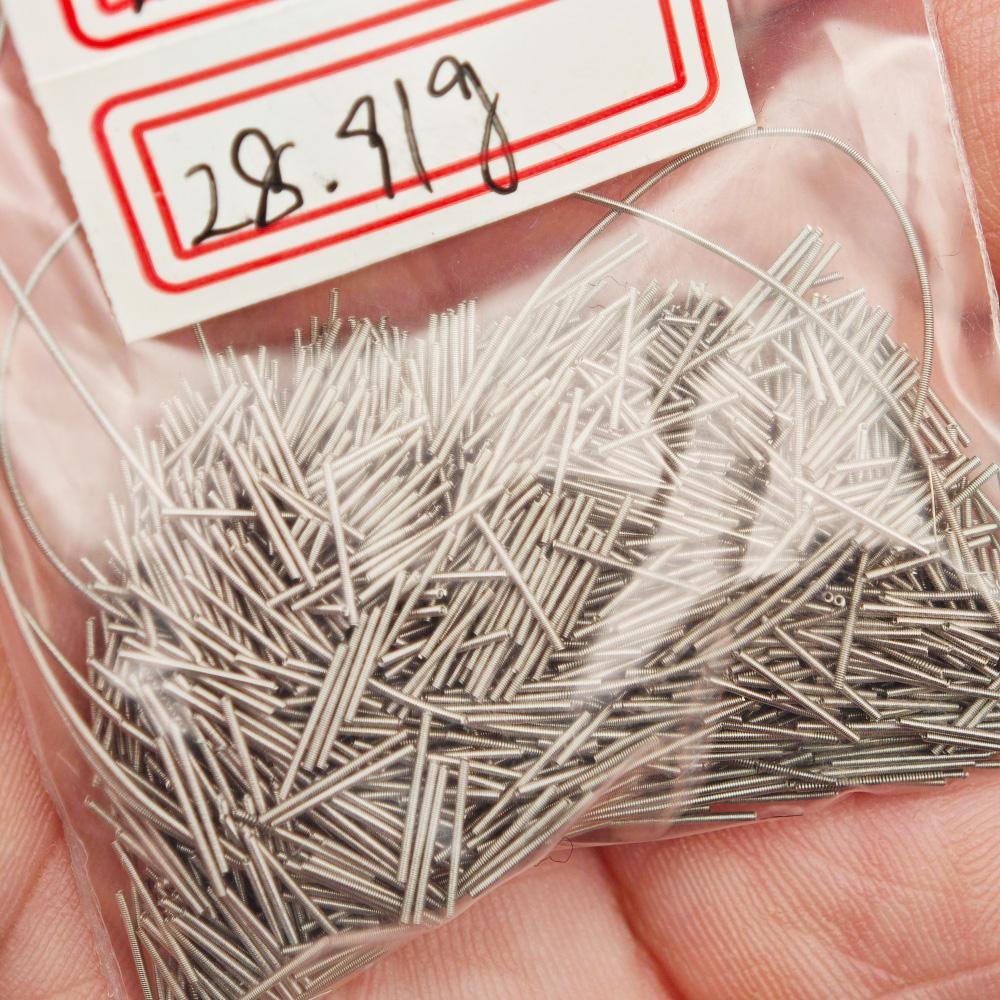

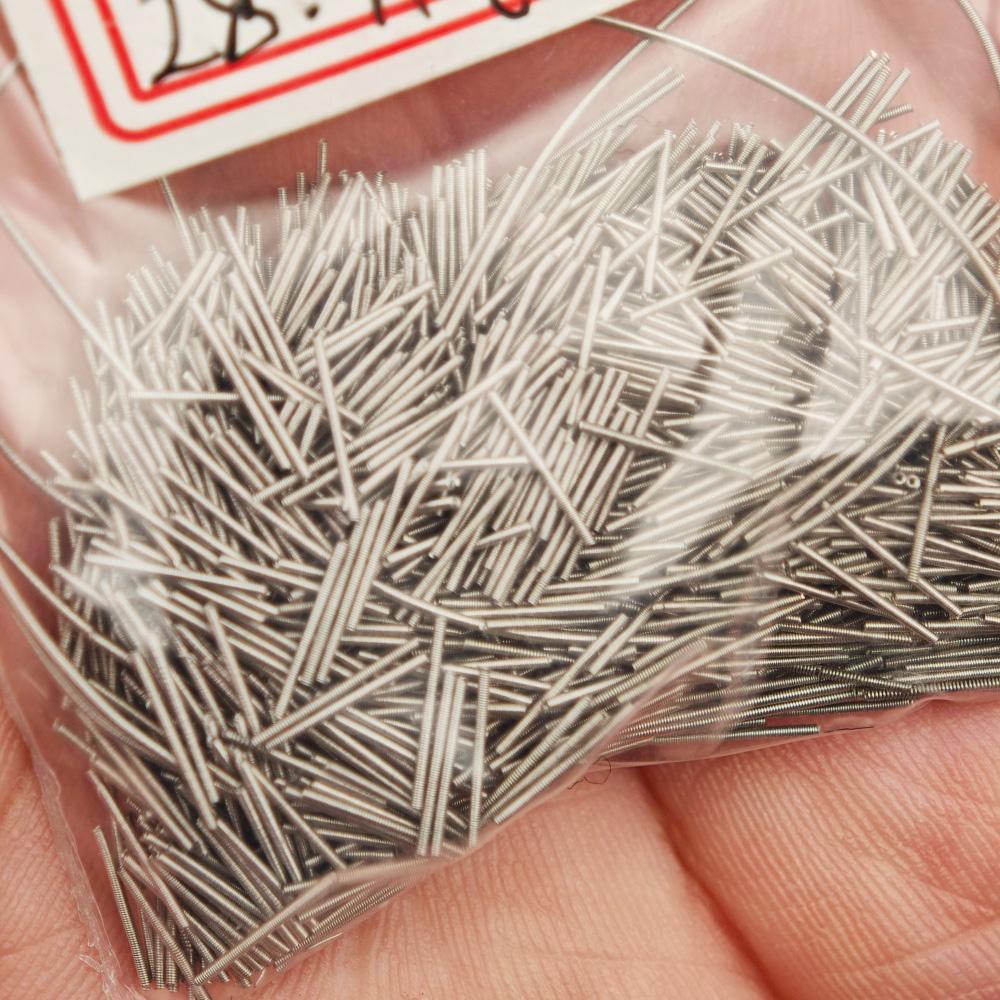

Pt-Ir Springs for Laboratory and Analytical Instruments

Pt-Ir (Platinum-Iridium) springs are engineered for precision, reliability, and durability in laboratory and analytical instruments. Typically composed of 90–95% platinum and 5–10% iridium, these alloys are chosen for their exceptional corrosion resistance, high mechanical strength, and stability under repeated stress.

Platinum ensures oxidation and chemical resistance, while iridium increases hardness, fatigue resistance, and high-temperature stability. This combination allows Pt-Ir springs to maintain dimensional integrity, consistent spring force, and mechanical reliability, even under repeated actuation in laboratory equipment or analytical devices.

DLX utilizes vacuum induction melting, precision wire drawing, and controlled annealing to produce uniform microstructure and minimal residual stress. The result is a spring capable of performing reliably in high-precision, high-cycle laboratory applications.

For more details, pls directly contact us.

• Analytical Instruments: Springs in spectrometers, chromatographs, and mass spectrometers.

• Laboratory Equipment: High-cycle springs in pipettors, dispensers, and mechanical actuators.

• Precision Sensors: Springs in pressure, temperature, and flow sensors for laboratories.

• Medical Diagnostics: Miniature springs in diagnostic devices and lab automation systems.

• Electronic Equipment: Relays, connectors, and micro-actuators requiring consistent force.

• Industrial Labs: Springs for environmental testing equipment, material testing devices, and robotics.

Industry Trend Analysis

The demand for high-performance laboratory and analytical instruments continues to grow with advancements in biotechnology, pharmaceuticals, environmental testing, and electronics. Springs in these applications must withstand repeated cycles without losing force or deforming, as even small deviations can affect measurement accuracy.

Traditional stainless steel or nickel alloys may degrade over time due to fatigue, corrosion, or dimensional changes. Pt-Ir springs provide unmatched fatigue resistance, chemical stability, and precision, ensuring reliability in long-term laboratory operations.

The trend toward miniaturization, automation, and high-throughput laboratory systems increases the need for high-quality Pt-Ir springs. DLX’s manufacturing expertise ensures that every spring performs consistently under these challenging conditions.

Comparison Table: Pt-Ir Springs vs Other Alloys

Article: DLX Pt-Ir Springs for Laboratory and Analytical Instruments

Laboratories and analytical facilities rely on components that maintain precision and durability under repeated use. DLX Pt-Ir springs are designed specifically for high-precision, high-cycle applications, delivering reliability in laboratory instruments, analytical devices, and diagnostic systems.

Pt-Ir springs combine the chemical and corrosion resistance of platinum with the hardness and high-temperature stability of iridium. This ensures that springs retain dimensional accuracy, consistent spring force, and mechanical integrity even under continuous actuation.

DLX employs advanced manufacturing techniques, including vacuum induction melting, precision wire drawing, and controlled annealing, to produce springs with uniform microstructure and minimal residual stress. These processes ensure that springs perform consistently in long-term laboratory use.

Springs in analytical instruments undergo thousands of cycles daily. Pt-Ir springs maintain performance where stainless steel or nickel alloys may fail due to fatigue or corrosion. DLX springs deliver:

• Long-term dimensional stability

• Consistent mechanical force

• Resistance to corrosion and chemical exposure

Compared to stainless steel, nickel, or titanium alloys, Pt-Ir springs provide:

• Superior fatigue resistance

• Exceptional chemical stability

• High thermal tolerance

• Long-term reliability for precision instruments

These advantages make Pt-Ir springs an ideal choice for critical laboratory and analytical applications where precision cannot be compromised.

DLX offers tailored spring solutions, allowing customization of wire diameter, coil geometry, spring constant, and alloy composition. Engineers can design springs to meet specific performance requirements, ensuring reliability in miniature diagnostic devices, high-cycle laboratory automation, and precision analytical instruments.

• Spectrometry & Chromatography: Reliable springs for sample handling and sensor mechanisms

• Diagnostic Automation: High-cycle springs for pipettors, dispensers, and robotic handlers

• Precision Sensors: Springs in flow, pressure, and temperature sensors used in labs

• Medical Diagnostics: Miniature springs for lab-on-chip devices and automated testing

• Environmental & Industrial Labs: Springs in testing machinery, material testers, and robotic systems

The drive toward automation, miniaturization, and high-throughput laboratory systems increases the demand for high-precision, fatigue-resistant springs. Pt-Ir springs are particularly valuable in biotechnology, pharmaceuticals, and advanced instrumentation, where consistent performance and longevity are critical.

DLX continues to invest in R&D for optimized alloy compositions, precise microstructure control, and custom spring design, ensuring springs exceed the reliability expectations of laboratory engineers worldwide.

Pt-Ir springs are durable, reducing the frequency of replacements and minimizing waste. DLX emphasizes responsible sourcing and recycling of platinum and iridium, ensuring sustainable production without compromising material purity or performance.

DLX provides unmatched value through:

• In-house alloy production and spring fabrication

• Custom engineering for laboratory and analytical applications

• Advanced testing for mechanical, thermal, and chemical performance

• Compliance with ASTM, DIN, and ISO standards

• Long-lasting, reliable springs designed for precision instruments

DLX Pt-Ir springs deliver precision, durability, and consistency, making them essential components in laboratory and analytical instruments across industries worldwide.

About Us:

Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.

For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.

Client Visits

Building Stronger Partnerships

We support all kinds of testing:

1. What is Pt-Ir alloy composed of?
   90–95% platinum and 5–10% iridium, optimized for chemical and mechanical stability.

2. Why are Pt-Ir springs ideal for laboratory instruments?
   They maintain dimensional stability and consistent spring force under repeated cycles.

3. Which industries benefit from these springs?
   Biotechnology, pharmaceuticals, diagnostics, analytical instrumentation, and industrial labs.

4. Can DLX provide custom spring specifications?
   Yes, including wire diameter, coil geometry, spring constant, and alloy composition.

5. How do Pt-Ir springs perform under repeated use?
   They retain mechanical integrity, fatigue resistance, and force consistency over thousands of cycles.

6. Are Pt-Ir springs corrosion-resistant?
   Yes, they resist chemical exposure and oxidation, ideal for lab environments.

7. What testing ensures spring quality?
   Fatigue testing, tensile strength evaluation, microstructure analysis, and chemical resistance tests.

8. Does DLX comply with international standards?
   Yes, all springs meet ASTM, DIN, and ISO standards for laboratory and analytical applications.
