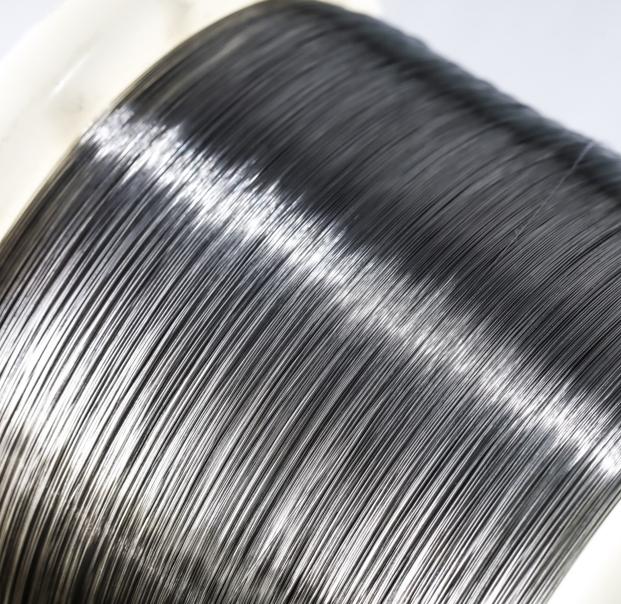

4J32 wire is a nickel-iron controlled Expansion Alloy designed to deliver unmatched stability and precision in environments where temperature fluctuation can easily affect performance. Known for its ability to maintain dimensional accuracy under heat variation, 4J32 is widely used in electronic and vacuum applications where precision and consistency are essential.
At DLX, we manufacture 4J32 wire with strict control over chemical composition, surface finish, and thermal expansion properties. Our goal is to provide engineers and manufacturers with a wire that performs with absolute reliability in demanding conditions—whether it’s inside a vacuum-sealed system or an aerospace control instrument.
This alloy typically contains around 32% nickel, balancing expansion characteristics and mechanical strength. It’s particularly well-suited for glass-to-metal seals, electronic leads, and other applications where expansion compatibility and thermal stability are vital.
For more details, pls directly contact us.
Key Characteristics:
-
Controlled coefficient of thermal expansion (CTE ≈ 3.5 × 10⁻⁶ /°C between 20–400°C)
-
Excellent dimensional stability
-
Good mechanical strength and ductility
-
Suitable for welding and forming
-
Compatible with glass and ceramics in vacuum sealing
-
Resistant to oxidation in controlled atmospheres
| Elements | 4J29 | 4J36 | |
| Carbon (C) | Not greater than | 0.03 | 0.05 |
| Sulfur (S) | 0.02 | 0.02 | |
| Phosphorus (P) | 0.02 | 0.02 | |
| Manganese (Mn) | ≤0.50 | 0.20-0.60 | |
| Silicon (Si) | ≤0.30 | ≤0.30 | |
| Nickel (Ni) | 28.5-29.5 | 35.0-37.0 | |
| Chromium (Cr) | - | - | |
| Cobalt (Co) | 16.8-17.8 | - | |
| Iron (Fe) | Rest | Rest | |
| Other Elements |
| Alloy Grade | 20°C-100°C | 20°C-300°C | 20°C-500°C |
| 4J36 Invar Alloy | 1.2×10⁻⁶ /°C | 2.5×10⁻⁶ /°C | - |
| 4J29 Kovar Alloy | 4.6×10⁻⁶ /°C | 5.5×10⁻⁶ /°C | 6.2×10⁻⁶ /°C |
| Alloy Grade | 4J36 Invar Alloy | 4J29 Kovar Alloy |
| Density (g/cm³) | 8.1 | 8.2 |
| Tensile Strength (MPa) | 500-600 | 600-700 |
| Yield Strength (MPa) | 250-350 | 300-400 |
| Hardness (HV) | 150-200 | 200-250 |
| Alloy Grade | 4J36 Invar Alloy | 4J29 Kovar Alloy |
| Electrical Resistivity (10⁻⁶ Ω·cm) | 80 | 50 |
| Thermal Conductivity (W/m·K) | 10-12 | 16-18 |
For more details, pls directly contact us.
4J32 wire is engineered for applications requiring thermal consistency and mechanical reliability. Its ability to match the expansion rates of other materials like glass or ceramics makes it ideal for precision electronic and vacuum components.
-
Vacuum tubes and electron devices – used for lead wires and sealing parts.
-
Aerospace systems – for precision sensors, temperature compensators, and measurement assemblies.
-
Electronic packaging – ensures thermal compatibility in circuit and semiconductor sealing.
-
Optical instruments – provides stable positioning for optical elements under varying temperatures.
-
Cryogenic equipment – maintains low expansion under extreme cold conditions.
-
Laboratory instruments – for high-precision measuring and control devices.
The demand for thermal stability materials like 4J32 is rapidly increasing due to the global trend toward miniaturized, high-performance electronic devices and aerospace instrumentation. As technology evolves, thermal mismatch between materials has become one of the most common causes of device failure.
4J32 plays a critical role in bridging that gap. Its precise thermal expansion rate ensures secure bonding between metals, ceramics, and glass, making it indispensable in vacuum-sealed and high-reliability environments.
DLX has been closely monitoring these trends. We’ve optimized our production of 4J32 wire to meet new industry expectations—especially in the fields of semiconductor manufacturing, vacuum technology, and next-generation aerospace systems. Our material stability and process reliability ensure consistent performance, even in highly specialized engineering environments.
DLX Company Advantage
DLX stands out in the precision alloy field through technology, experience, and consistency. Our 4J32 wire production line uses modern vacuum melting, precision rolling, and continuous annealing techniques to achieve uniform composition and surface stability.
Our key strengths:
-
Precision Control: We maintain strict batch-to-batch consistency with low impurity levels and tight dimensional tolerances.
-
Flexible Supply Options: From ultra-fine wire diameters to heavy-gauge forms, DLX offers full customization to fit your project.
-
Superior Quality Assurance: Each coil undergoes tensile, expansion, and microstructure tests to ensure compliance with performance standards.
-
Technical Support: DLX engineers work directly with clients to recommend wire grades, finishes, and heat treatment solutions based on end-use conditions.
-
Global Reliability: With stable export capacity and an established logistics network, DLX ensures on-time delivery worldwide.
DLX 4J32 wire has been used by global clients in vacuum systems, precision instruments, and sensor manufacturing, delivering consistent results over long operational lifetimes.
Comparative Data Table
| Property | 4J32 Wire | 4J29 Wire (Kovar) | 4J36 Wire (Invar 36) |
|---|---|---|---|
| Nickel Content (%) | 32 | 29 | 36 |
| CTE (20–400°C) | 3.5 × 10⁻⁶ /°C | 5.0 × 10⁻⁶ /°C | 1.3 × 10⁻⁶ /°C |
| Density (g/cm³) | 8.1 | 8.3 | 8.1 |
| Tensile Strength (MPa) | 450–650 | 450–620 | 490–690 |
| Magnetic Properties | Weakly magnetic | Weakly magnetic | Weakly magnetic |
| Machinability | Excellent | Good | Moderate |
| Main Application | Electronic and vacuum devices | Glass-to-metal seals | Cryogenic and aerospace systems |
Compared to similar alloys, 4J32 strikes a balanced combination of thermal control, workability, and strength. While Invar offers slightly lower expansion, 4J32 provides superior mechanical behavior and weldability, making it ideal for sealing and assembly work.
About Us:
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships
We support all kinds of testing:
FAQs
1. What is 4J32 wire used for?
It’s used in electronic and vacuum devices where precise dimensional control is required, such as in glass-to-metal seals, vacuum tubes, and precision sensors.
2. What makes 4J32 wire thermally stable?
Its nickel-iron composition is engineered to maintain a consistent coefficient of thermal expansion, minimizing dimensional shifts during temperature changes.
3. Can DLX supply custom sizes of 4J32 wire?
Yes, we provide wires in various diameters, from fine precision wires to thicker gauges, depending on your application needs.
4. How does 4J32 compare to 4J29 or 4J36?
4J32 has a slightly higher expansion rate than 4J36 but better mechanical strength. Compared to 4J29, it offers improved dimensional control for electronic sealing applications.
5. Is 4J32 magnetic?
Yes, it is weakly magnetic at room temperature and loses magnetism near its Curie temperature of around 400°C.
6. What type of surface finishes are available?
DLX offers bright annealed, polished, and oxide-free finishes suitable for vacuum or electronic sealing applications.
7. Can 4J32 be welded?
Yes, it can be welded using TIG, MIG, or resistance methods under controlled atmospheres to avoid oxidation.
8. What quality standards does DLX 4J32 wire meet?
Our 4J32 wire conforms to GB/T 14986 and other equivalent international standards for controlled expansion alloys.
Market Outlook
With the rapid growth of the aerospace, electronics, and vacuum industries, the demand for controlled expansion materials like 4J32 is projected to rise steadily. Companies worldwide are seeking suppliers capable of providing both quality and flexibility, and DLX is ready to meet that demand.
DLX continues to invest in automation and material testing technology, ensuring that each 4J32 wire product meets the tight tolerances modern applications require. From micro-scale components in electronics to precision systems in aerospace, DLX offers consistent quality that customers can rely on.
Conclusion
4J32 alloy wire is a high-performance solution for modern industries requiring exceptional thermal stability and dimensional control. At DLX, we take pride in producing 4J32 wire that consistently meets the strict standards of vacuum and electronic applications. Through advanced production, rigorous quality testing, and expert engineering support, DLX ensures our clients receive reliable performance in every meter of wire.
Whether for high-precision sensors, vacuum tubes, or glass-to-metal sealed components, DLX 4J32 wire provides long-term stability and superior reliability under changing thermal environments.
