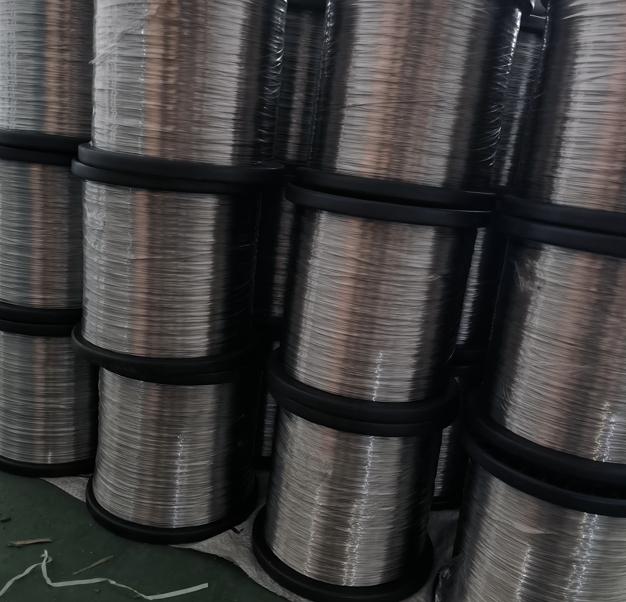

The 4J33 alloy wire, a Fe-Ni-Co (Iron-Nickel-Cobalt) controlled expansion material, is one of the most reliable alloys used in hermetic sealing and electronic packaging. Its carefully balanced composition — roughly 33% nickel, 17% cobalt, and the remainder iron — provides a thermal expansion coefficient that closely matches borosilicate and other hard glasses. This makes it ideal for creating durable, airtight seals that maintain stability under temperature fluctuations and mechanical stress.
At DLX, we produce high-purity 4J33 wire with excellent consistency in expansion, dimensional precision, and sealing reliability. Our manufacturing process involves vacuum melting, precision drawing, and controlled annealing to achieve exceptional surface finish and uniform microstructure, ensuring that each spool of wire meets the most demanding requirements in aerospace, vacuum electronics, and semiconductor applications.
For more details, pls directly contact us.
The global hermetic packaging and electronic materials market is rapidly evolving. With growing demand for compact, high-performance electronic devices in aerospace, automotive, and semiconductor industries, the need for controlled expansion alloys like 4J33 is increasing.
Miniaturization and the move toward high-temperature, high-vibration operating environments are driving a new generation of materials designed for structural integrity and thermal consistency. The Fe-Ni-Co alloy family has become the go-to choice for manufacturers requiring precision sealing and long-term performance.
At DLX, we’re seeing a clear trend among clients moving from generic expansion alloys to precision-refined, high-consistency materials like our 4J33 wire. As electronic systems grow in complexity, maintaining reliable seals becomes essential — not just for performance, but for safety and longevity.
| Elements | 4J29 | 4J36 | |
| Carbon (C) | Not greater than | 0.03 | 0.05 |
| Sulfur (S) | 0.02 | 0.02 | |
| Phosphorus (P) | 0.02 | 0.02 | |
| Manganese (Mn) | ≤0.50 | 0.20-0.60 | |
| Silicon (Si) | ≤0.30 | ≤0.30 | |
| Nickel (Ni) | 28.5-29.5 | 35.0-37.0 | |
| Chromium (Cr) | - | - | |
| Cobalt (Co) | 16.8-17.8 | - | |
| Iron (Fe) | Rest | Rest | |
| Other Elements |
| Alloy Grade | 20°C-100°C | 20°C-300°C | 20°C-500°C |
| 4J36 Invar Alloy | 1.2×10⁻⁶ /°C | 2.5×10⁻⁶ /°C | - |
| 4J29 Kovar Alloy | 4.6×10⁻⁶ /°C | 5.5×10⁻⁶ /°C | 6.2×10⁻⁶ /°C |
| Alloy Grade | 4J36 Invar Alloy | 4J29 Kovar Alloy |
| Density (g/cm³) | 8.1 | 8.2 |
| Tensile Strength (MPa) | 500-600 | 600-700 |
| Yield Strength (MPa) | 250-350 | 300-400 |
| Hardness (HV) | 150-200 | 200-250 |
| Alloy Grade | 4J36 Invar Alloy | 4J29 Kovar Alloy |
| Electrical Resistivity (10⁻⁶ Ω·cm) | 80 | 50 |
| Thermal Conductivity (W/m·K) | 10-12 | 16-18 |
For more details, pls directly contact us.
Applications
1. Hermetic Packaging:
4J33 wire is extensively used in hermetically sealed components such as semiconductor packages, feedthroughs, and vacuum electronic devices. Its expansion compatibility with glass and ceramics prevents cracking during temperature cycling.
2. Electronic Components:
Used in transistor headers, integrated circuit (IC) housings, and sensor assemblies, where air-tightness and corrosion resistance are critical to device reliability.
3. Aerospace and Defense Systems:
In avionics and satellite systems, 4J33 wire ensures long-term stability for components that must function across wide temperature ranges and in high-vibration environments.
4. Precision Instruments:
Employed in optical and scientific instruments requiring minimal distortion under heat variations.
5. Vacuum Systems:
4J33 performs well in vacuum environments due to its low outgassing and oxidation resistance.
6. Power and Communication Devices:
Used in high-reliability connectors, terminal leads, and electronic enclosures that require lifetime stability.
Material Composition and Key Properties
| Parameter | 4J33 (Fe-Ni-Co Alloy) | 4J36 (Invar 36) | 4J29 (Kovar-Type Alloy) |
|---|---|---|---|
| Nickel (Ni) | 33% ± 1% | 36% ± 1% | 29% ± 1% |
| Cobalt (Co) | 17% ± 1% | — | 17% ± 1% |
| Iron (Fe) | Balance | Balance | Balance |
| Density (g/cm³) | 8.2 | 8.1 | 8.4 |
| Thermal Expansion (20–450°C) | 5.2 × 10⁻⁶ /°C | 1.3 × 10⁻⁶ /°C | 5.0 × 10⁻⁶ /°C |
| Tensile Strength (MPa) | 520–650 | 450–550 | 500–700 |
| Electrical Resistivity (μΩ·m) | 0.47 | 0.78 | 0.48 |
| Magnetic Property | Magnetic | Weakly Magnetic | Magnetic |
| Melting Point (°C) | 1430–1450 | 1425–1450 | 1430–1450 |
4J33’s thermal expansion stability makes it a crucial material for hermetic seals, as it ensures dimensional stability and airtight bonding between dissimilar materials under various temperature conditions.The global hermetic packaging and electronic materials market is rapidly evolving. With growing demand for compact, high-performance electronic devices in aerospace, automotive, and semiconductor industries, the need for controlled expansion alloys like 4J33 is increasing.
Miniaturization and the move toward high-temperature, high-vibration operating environments are driving a new generation of materials designed for structural integrity and thermal consistency. The Fe-Ni-Co alloy family has become the go-to choice for manufacturers requiring precision sealing and long-term performance.
At DLX, we’re seeing a clear trend among clients moving from generic expansion alloys to precision-refined, high-consistency materials like our 4J33 wire. As electronic systems grow in complexity, maintaining reliable seals becomes essential — not just for performance, but for safety and longevity.
Why Choose DLX 4J33 Alloy Wire
DLX’s 4J33 alloy wire stands out due to our high precision manufacturing, material purity, and technical control. Our advanced production technology ensures that every batch of 4J33 wire maintains the same metallurgical and dimensional characteristics, guaranteeing consistent sealing behavior.
Key Advantages of DLX 4J33 Wire:
-
Perfect CTE Match:
DLX precisely controls the alloy composition to ensure an exact match between the thermal expansion of the metal and the sealing glass or ceramic. -
Excellent Bonding Strength:
Through vacuum refining and oxide-free surface treatment, our wire forms a strong, uniform bond with sealing materials. -
Dimensional Accuracy:
Tolerance control as tight as ±0.005 mm ensures perfect integration in precision assembly processes. -
Clean Surface and Easy Forming:
The bright, oxide-free surface minimizes the need for pre-cleaning and improves wire forming during coil or feedthrough fabrication. -
High Temperature Stability:
The alloy maintains mechanical and expansion stability from cryogenic temperatures up to 450°C. -
Custom Manufacturing:
DLX offers tailor-made diameters, tempers, and packaging formats to meet customer-specific sealing requirements.
Comparison with Conventional Materials
| Property | DLX 4J33 Wire | Standard Fe-Ni Alloy | General Kovar-Type Alloy |
|---|---|---|---|
| CTE Match with Glass | Excellent | Moderate | Good |
| Purity & Cleanliness | Ultra-High | Standard | High |
| Surface Finish | Bright, Oxide-Free | Polished | Bright |
| CTE Consistency (Batch) | ±2% | ±5% | ±3% |
| Hermetic Seal Performance | Outstanding | Limited | Very Good |
| Magnetic Property | Controlled | Unstable | Controlled |
| DLX Quality Traceability | 100% | Partial | Partial |
DLX’s alloy demonstrates better expansion uniformity and long-term sealing performance, leading to lower defect rates and improved operational reliability for end-users.
DLX has been at the forefront of controlled expansion alloy production for years, serving global customers in electronics, defense, aerospace, and instrumentation. What distinguishes DLX is not only our material quality but also our application-focused engineering support.
We work directly with R&D and production teams to optimize wire selection, sealing processes, and performance results. Our vacuum refining and continuous casting systems minimize impurities, and our fully automated testing ensures each batch meets international standards.
By combining metallurgy expertise with customer-specific customization, DLX helps engineers achieve tighter tolerance seals, higher yield rates, and longer component lifespans — all while reducing material waste and process downtime.
About Us:
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships
We support all kinds of testing:
1. What is the main composition of 4J33 alloy wire?
It’s an Fe-Ni-Co alloy containing about 33% nickel, 17% cobalt, and the balance iron.
2. Why is it ideal for hermetic packaging?
Because its thermal expansion closely matches glass or ceramic materials, preventing cracks and leaks under temperature changes.
3. What industries commonly use 4J33 wire?
Electronics, aerospace, defense, semiconductor packaging, and vacuum systems.
4. Does DLX offer custom diameters or spool sizes?
Yes. DLX can provide customized wire diameters, spool weights, and mechanical properties to fit customer requirements.
5. How does DLX control the thermal expansion consistency?
Each batch is vacuum-melted and tested for uniform CTE using high-precision thermal analyzers.
6. Is 4J33 wire magnetic?
Yes, it has moderate magnetic properties, which can be useful in electronic and sensor assemblies.
7. How is the surface treated for sealing?
DLX provides bright, oxide-free, and clean surfaces, ensuring optimal bonding strength with glass or ceramic.
8. Can DLX 4J33 wire operate in vacuum or cryogenic conditions?
Absolutely. Its structure remains stable in both ultra-high vacuum and low-temperature environments.
Conclusion
The Controlled Expansion 4J33 Wire is a critical material for industries that demand reliability, precision, and consistency under challenging environmental conditions. DLX’s 4J33 alloy wire combines metallurgical excellence with technical customization, delivering exceptional performance in hermetic and electronic packaging applications.
Through rigorous quality control, precision processing, and engineering collaboration, DLX continues to set the standard for controlled expansion materials. Our focus is not just to provide alloy wire but to supply the confidence that every seal, connector, and package will perform as intended — reliably, for years to come.
