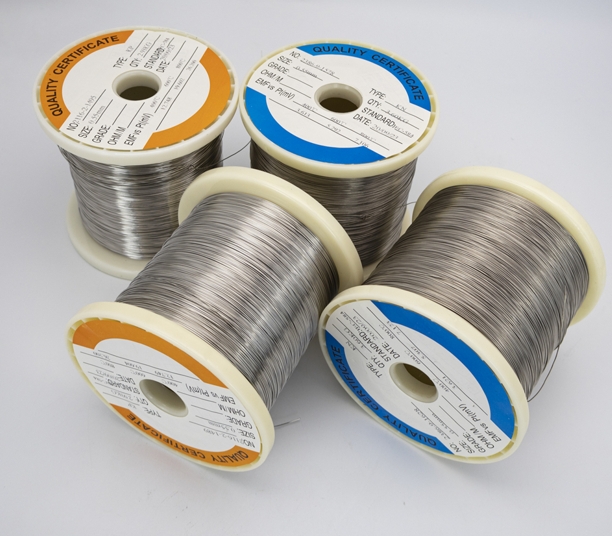

Our Stainless Steel Braided Thermocouple Wire is built tough for furnace applications where durability and accuracy are non-negotiable. Using stranded conductors like Chromel and Alumel for Type K thermocouples, this wire delivers precise temperature signals even in the hottest, most abrasive environments. The stainless steel braiding adds a rugged layer of protection, shielding against physical wear, corrosion, and electromagnetic interference (EMI). We offer insulation options like fiberglass (up to 900°F/482°C) or ceramic fiber (up to 2190°F/1200°C), so you can pick what suits your furnace setup. Whether you’re running a steel mill or a heat treatment plant, our wire keeps your temperature readings spot-on.
The stranded design makes it flexible enough to snake through complex furnace layouts, while the stainless steel braid ensures it can take a beating without losing performance. We also provide shielding options, like a drain wire, to block out electrical noise in busy industrial settings. Plus, you can customize the wire’s gauge, insulation, and length to match your exact needs. It’s designed to meet standards like IEC 60584 and ANSI MC96.1, so you know you’re getting top-tier quality.
Industry Analysis
The thermocouple wire market is booming, driven by the need for precise temperature control in industries like steel, cement, and power generation. Furnaces, with their extreme heat and harsh conditions, demand cables that can handle intense environments without failing. The rise of automation and Industry 4.0 is pushing for more reliable, durable solutions, and stainless steel braided wires are stepping up to the plate. These wires are gaining popularity because they combine flexibility with unmatched toughness, unlike traditional unbraided cables that wear out faster. Insulation advancements, like ceramic fiber, are also making waves, allowing wires to withstand temperatures well above 1000°C.
Looking forward, trends like real-time monitoring and IoT integration are increasing demand for cables that resist EMI and maintain signal accuracy. The push for energy efficiency and stricter safety standards is also driving growth, as industries need dependable tools to monitor high-temperature processes. Our stainless steel braided wire is designed with these trends in mind, offering durability and precision that keep up with modern industrial demands.
ASTM | (American Society for Testing and Materials) E 230 | ||
ANSI | (American National Standard Institute) MC 96.1 | ||
IEC | (European Standard by the International Electrotechnical Commission 584)-1/2/3 | ||
DIN | (Deutsche Industrie Normen) EN 60584-1/2 | ||
BS | (British Standards) 4937.1041, EN 60584-1/2 | ||
NF | (Norme Francaise) EN 60584-1/2-NFC 42323-NFC 42324 | ||
JIS | (Japanese Industrial Standards) C 1602-C 1610 | ||
GOST | (Unification of the Russian Specifications) 3044 | ||
Code | +Positive leg | -Negative leg | Temperature Range |
N | Ni-Cr-Si (NP) | Ni-Si-Mg (NN) | -454 to 2300°F (-270 to 1,260°C) |
K | Ni-Cr-Si (KP) | Ni-Al (KN) | –454 to 2,300°F (–270 to 1260°C) |
E | Ni-Cr (EP) | Cu-Ni<constantan> (EN) | -454 to 1600°F (-270 to 870°C) |
J | Iron (JP) | Cu-Ni<constantan> (JN) | -346 to 1,400°F (-210 to 760°C) |
T | Copper (TP) | Cu-Ni<constantan> (TN) | -454 to 700°F (-270 to 370°C) |
B | Platinum Rhodium-30% | Platinum Rhodium-6% | 32 to 3100°F (0 to 1700°C) |
R | Platinum Rhodium-13% | Platinum | -58 to 2700°F (-50 to 1480°C) |
S | Platinum Rhodium-10% | Platinum | -58 to 2700°F (-50 to 1480°C) |
C (W-Re5/26) | Tungsten 5% Rhenium | Tungsten 26% Rhenium | 212 to 4172°F (100 to 2300°C) |
D (W-Re3/25) | Tungsten 3% Rhenium | Tungsten 25% Rhenium | 212 to 4172°F (100 to 2300°C) |
G (W-Re26) | Pure Tungsten | Tungsten 26% Rhenium | 212 to 4172°F (100 to 2300°C) |
For more details, pls directly contact us.
Our Stainless Steel Braided Thermocouple Wire is a workhorse in high-temperature environments. In steel production, it monitors furnace temperatures to ensure consistent output. Cement plants use it to track kiln conditions, where extreme heat and dust are the norm. Glass manufacturing relies on it for precise temperature control during melting and forming processes. Power generation facilities use it in boilers and turbines to maintain safety and efficiency. It’s also a go-to for heat treatment applications, where accurate readings are critical for hardening or annealing metals. The wire’s flexibility and robust braiding make it perfect for navigating complex furnace setups or retrofitting older systems.
Company Comparison and Our Advantages
Our Stainless Steel Braided Thermocouple Wire outshines others in the market thanks to its rugged design and versatility. While some companies use solid conductors or weaker braiding materials, we stick with stranded conductors for flexibility and stainless steel braiding for superior abrasion resistance. Our insulation options, like ceramic fiber, handle temperatures up to 2190°F (1200°C), far exceeding standard PVC or lower-grade fiberglass. The stainless steel braid also provides excellent EMI shielding, ensuring clean signals in noisy furnace environments. We offer full customization—pick your gauge, insulation, or length, and we’ll deliver exactly what you need.
With decades of experience, our U.S.-based manufacturing prioritizes quality control and innovation. We invest heavily in R&D to create wires that meet the toughest industry standards, like IEC and ANSI. Unlike others who cut corners with cheaper materials, we focus on durability and precision, ensuring our wire lasts longer and performs better in extreme conditions. Our commitment to tailored solutions and rigorous testing makes us the go-to choice for furnace operators who need reliability without compromise.
Comparison Parameters Table
Parameter | Our SS Braided Wire | Competitor A | Competitor B |
|---|---|---|---|
Conductor Material | Chromel/Alumel (Type K) | Chromel/Alumel | Chromel/Alumel |
Conductor Type | Stranded (7-strand, 20 AWG) | Solid | Stranded (5-strand, 20 AWG) |
Insulation Material | Fiberglass or Ceramic Fiber (up to 2190°F) | PVC (up to 221°F/105°C) | Fiberglass (up to 900°F/482°C) |
Temperature Range | -200°C to +1200°C | 0°C to +105°C | -100°C to +482°C |
Braiding | Stainless Steel (high abrasion resistance) | No braiding | Tinned Copper Braid |
EMI Shielding | Excellent (SS braid with drain wire) | None | Moderate (basic braid) |
Flexibility | High (stranded conductors) | Low (solid conductors) | Moderate (less flexible braid) |
Customization | Gauge, insulation, and length options | Limited options | Standard lengths only |
About Us:
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships
We support all kinds of testing:
FAQs:
What is Stainless Steel Braided Thermocouple Wire?
It’s a high-durability cable with thermocouple conductors wrapped in a stainless steel braid, designed to transmit temperature signals in extreme conditions like furnaces.Why use stainless steel braiding for thermocouple wire?
The stainless steel braid adds extra protection against abrasion, heat, and corrosion, making it ideal for harsh furnace environments.What insulation materials are used in your thermocouple wire?
We offer fiberglass, PFA, or ceramic fiber insulation, with temperature ratings up to 900°F (482°C) for fiberglass and 2190°F (1200°C) for ceramic fiber.What industries use your braided thermocouple wire?
It’s used in steel production, cement manufacturing, glass processing, power generation, and heat treatment industries for reliable temperature monitoring.Can your wire handle high-temperature furnace conditions?
Yes, our wire is built to withstand temperatures up to 2190°F (1200°C) with ceramic fiber insulation, ensuring performance in intense furnace settings.How does the stainless steel braid improve performance?
It provides mechanical strength, EMI shielding, and resistance to physical damage, ensuring accurate signals in noisy or abrasive environments.Is your thermocouple wire customizable?
Absolutely, we offer various gauge sizes, insulation types, and lengths tailored to your specific furnace application needs.What thermocouple types are compatible with your wire?
Our wire supports Type K, J, T, E, and N thermocouples, meeting standards like ANSI MC96.1 and IEC 60584.
