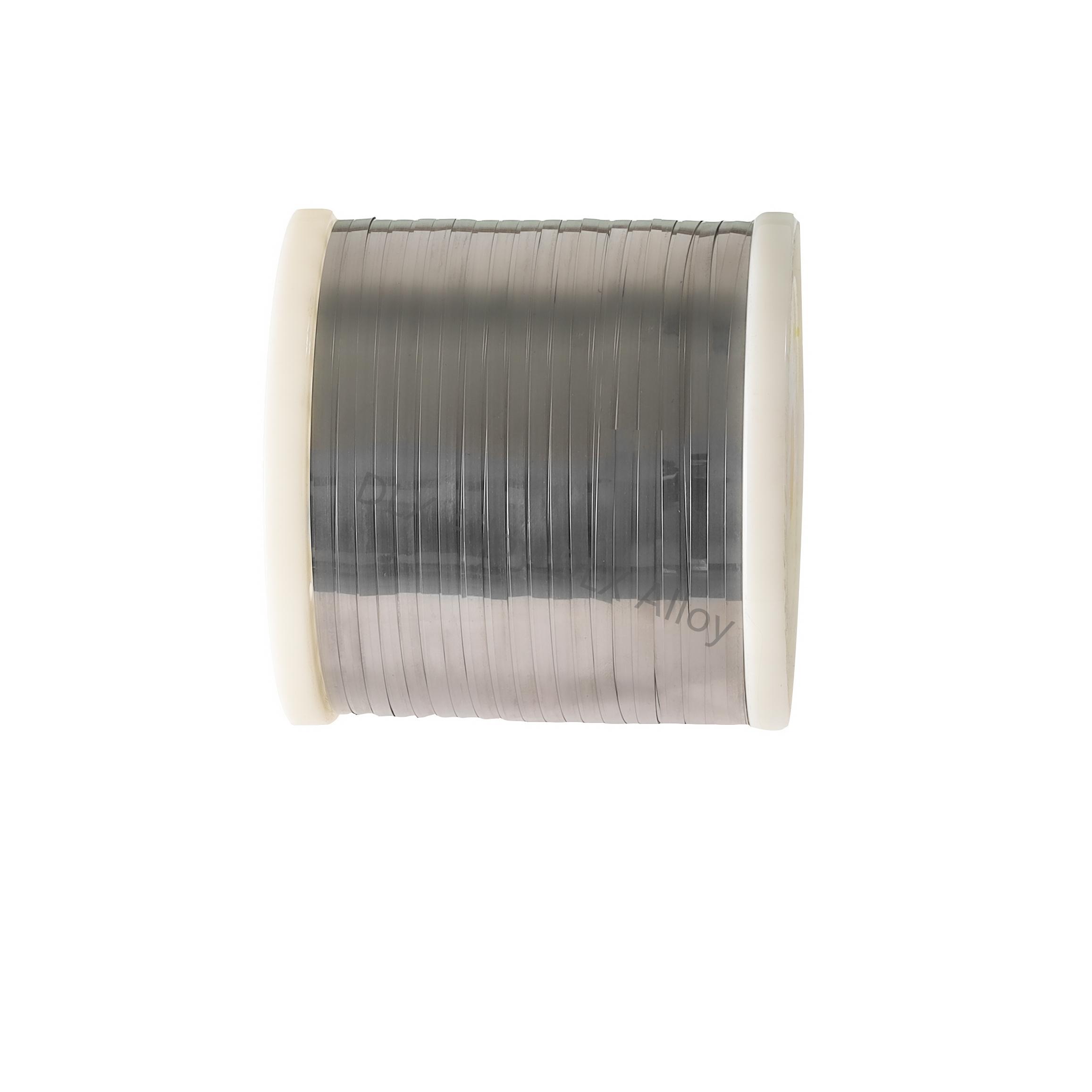

4J43 wire is one of the most widely used soft magnetic alloys in low-loss magnetic circuits. With its balanced 43% nickel content and carefully controlled metallurgy, the material provides high permeability, low coercivity, and stable magnetic characteristics. At DLX, we have worked with 4J43 wire across multiple industries, supplying customers who need reliable magnetic performance for precision components, weak-signal transformers, sensors, and electromagnetic modules.
Unlike many high-nickel alloys that sacrifice mechanical strength for soft magnetic performance, 4J43 maintains a good balance. This makes the wire easy to form, wind, weld, and anneal without causing structural deformation or performance drift. Our customers who build fine coils or micro-electronic magnetic parts often choose 4J43 for this exact reason.
4J43 is also known for its excellent response to low-intensity magnetic fields. In applications where energy loss must be minimized—such as miniature transformers, precision sensors, and low-power magnetic circuits—the alloy performs reliably.
For more details, pls directly contact us.
The key advantage of 4J43 lies in its magnetic behavior. It achieves high initial and maximum permeability even under weak excitation, which is crucial for low-loss circuits. Because the alloy operates with minimal hysteresis loss, it preserves signal clarity and reduces heating under cyclic magnetic loads.
The combination of its magnetic and mechanical characteristics includes:
High magnetic permeability
Very low coercivity
Low core loss under AC excitation
Stable magnetic performance from room temperature to ~400°C
Good mechanical strength for winding and forming
Controllable annealing response
Excellent repeatability in mass production
DLX places special emphasis on processing quality. Our vacuum melting, precision drawing, and controlled atmosphere annealing ensure uniform grain structure and minimal magnetic variation from batch to batch. This is especially important for customers producing high-volume electronic components where consistency is non-negotiable.
Alloy Grades | C | S | P | Mn | Si | Ni | Cr | Co | Mo | Cu | Al | Nb | Fe | Other Elements |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1J06 | 0.04 | 0.015 | 0.015 | ≤0.10 | ≤0.15 | - | - | - | - | - | 5.5-6.5 | - | Rest | - |
1J12 | 0.03 | 0.015 | 0.015 | ≤0.10 | ≤0.15 | - | - | - | - | - | 11.6-12.4 | - | Rest | - |
1J17 | 0.03 | 0.02 | 0.02 | ≤0.60 | ≤0.20 | - | 15.5-16.5 | - | - | - | - | - | Rest | - |
1J18 | 0.03 | 0.02 | 0.02 | 0.3-0.7 | ≤0.15 | 0.5-0.7 | 17-18.5 | - | - | - | - | - | Rest | Ti: 0.3-0.7 |
1J22 | 0.04 | 0.02 | 0.02 | ≤0.3 | ≤0.3 | ≤0.5 | - | 49-51 | - | ≤0.2 | - | - | Rest | V: 0.8-1.8 |
1J30 | 0.04 | 0.02 | 0.02 | ≤0.40 | ≤0.30 | 29.5-30.5 | - | - | - | - | - | - | Rest | - |
0.03 | 0.02 | 0.02 | ≤0.60 | ≤0.20 | 35.0-37.0 | - | - | - | - | - | - | Rest | - | |
1J38 | 0.03 | 0.05 | 0.02 | 0.3-0.6 | 0.15-0.3 | 37.5-38.5 | 12.5-13.5 | - | - | - | - | - | Rest | - |
1J46 | 0.03 | 0.02 | 0.02 | 0.6-1.1 | 0.15-0.3 | 45.0-46.5 | - | - | - | ≤0.2 | - | - | Rest | - |
1J50 | 0.03 | 0.02 | 0.02 | 0.3-0.6 | 0.15-0.3 | 49-50.5 | - | - | - | ≤0.2 | - | - | Rest | - |
1J51 | 0.03 | 0.02 | 0.02 | 0.3-0.6 | 0.15-0.3 | 49-50.5 | - | - | - | ≤0.2 | - | - | Rest | - |
1J54 | 0.03 | 0.02 | 0.02 | 0.3-0.6 | 1.1-1.4 | 49.5-51 | 3.8-4.2 | - | - | ≤0.2 | - | - | Rest | - |
1J76 | 0.03 | 0.02 | 0.02 | 0.3-0.6 | 0.15-0.3 | 75.0-76.5 | 1.8-2.2 | - | - | 4.8-5.2 | - | - | Rest | - |
1J77 | 0.03 | 0.02 | 0.02 | 0.3-0.6 | 0.15-0.3 | 75.5-78 | - | - | 3.9-4.5 | 4.8-6.0 | - | - | Rest | - |
0.03 | 0.02 | 0.02 | 0.6-1.10 | 0.3-0.5 | 78.5-80.0 | - | - | 3.8-4.1 | ≤0.2 | - | - | Rest | - | |
1J80 | 0.03 | 0.02 | 0.02 | 0.6-1.10 | 1.1-1.5 | 79.0-81.5 | 2.6-3.0 | - | - | ≤0.2 | - | - | Rest | - |
1J85 | 0.03 | 0.02 | 0.02 | 0.3-0.60 | 0.15-0.3 | 79.0-81.0 | - | - | 4.8-5.2 | ≤0.2 | - | - | Rest | - |
1J87 | 0.03 | 0.02 | 0.02 | 0.3-0.6 | ≤0.3 | 78.5-80.5 | - | - | 1.6-2.2 | - | - | 6.5-7.5 | Rest | - |
For more details, pls directly contact us.
Low-loss magnetic circuits require materials that respond predictably to small magnetic changes without absorbing unnecessary energy. 4J43 fits perfectly into this category. The alloy is widely used in:
Weak-signal transformers
Magnetic path components
High-sensitivity inductors
Precision sensors
Electromagnetic shielding parts
Relays and actuators
Aerospace navigation modules
Micro-electronic control devices
In many of these applications, slight variations in permeability or coercivity can lead to measurement errors. 4J43’s stability helps manufacturers reduce signal noise, maintain accurate readings, and optimize overall device efficiency.
DLX customers often use our 4J43 wire to build fine-wound coils where magnetic uniformity matters. Even extremely small deviations in hardness or internal stress can disrupt performance. To avoid this, we supply the wire with customized magnetic annealing so the final properties match the design requirements exactly.
Comparison Table: 4J43 vs Similar Alloys for Magnetic Circuits
| Item | 4J43 Wire | 4J50 Wire | 4J42 Wire |
|---|---|---|---|
| Nickel Content | ~43% | ~50% | ~42% |
| Permeability | High | Very high | Medium |
| Coercivity | Very low | Low | Low |
| Hysteresis Loss | Very low | Low | Medium |
| Mechanical Strength | High | Medium | High |
| Max Operating Temp | ~350–400°C | ~350°C | ~350°C |
| Application Focus | Low-loss circuits, sensors | Magnetic shielding | Electronic sealing |
| Cost Efficiency | High | Medium | High |
The global electronics industry is shifting fast. With the rise of electric vehicles, smart devices, aerospace upgrades, and automation, there is rapidly growing demand for high-performance magnetic materials. Several trends directly impact the need for 4J43:
Miniaturization of electronic components
Growth of high-efficiency sensors and control modules
Expansion of aerospace and defense electronics
Electrification in automotive platforms
Growing precision measurement and industrial automation sectors
Increasing attention to energy loss, efficiency, and thermal stability
Low-loss magnetic circuits are now found everywhere—from industrial motors to medical electronics to communication systems. As performance requirements continue increasing, materials like 4J43 are becoming essential in the design phase.
Another important trend is stricter expectations from manufacturers. Engineers want materials that behave consistently under different loads and assembly conditions. Mechanical strength, winding performance, magnetic homogeneity, and stress stability all play larger roles now than they did ten years ago. DLX is deeply involved in this shift because our clients rely on us not only as a materials supplier but as a technical partner.
What Sets DLX Apart in 4J43 Production
At DLX, our production philosophy goes far beyond simply delivering qualified products. We combine manufacturing experience, application knowledge, and rigorous testing to ensure the wire performs exactly as expected.
Several DLX advantages include:
Vacuum-smelted purity ensures clean, stable magnetic behavior
Tight diameter control for coil precision
Multiple annealing options: bright, stress-relief, vacuum
Customizable mechanical state (soft, half-hard, hard)
Consistent batch-to-batch permeability
Quick lead times and scalable production
Support for fine wire (0.03 mm) and custom coil shapes
Real-world testing for weak-field applications
Because we work closely with companies building precision magnetic circuits, we understand how small changes in material condition can impact the final device. We frequently support customers during prototyping to refine wire hardness, annealing temperature, and stress control so their mass production becomes smoother.
Many manufacturers continue to choose DLX because they get stable performance across long-term orders, not just one shipment. That reliability protects their downstream supply chain and reduces the risk of component variability.
Company Comparison from DLX’s Perspective
When comparing DLX with other suppliers, the key difference lies in attention to application-specific detail. Many suppliers offer 4J43 as a basic commodity. DLX treats it as a precision engineering material.
We evaluate critical factors such as:
Stress sensitivity during winding
Required coercivity levels
Heat treatment effects on permeability
Coil tightness and deformation limits
Magnetic uniformity required for low-loss circuits
Temperature stability under continuous operation
By understanding these technical details, we tailor the wire condition before shipping. This minimizes issues during manufacturing and helps customers achieve better efficiency, lower rejection rates, and stronger magnetic performance.
Conclusion
High permeability 4J43 wire is one of the most reliable materials for low-loss magnetic circuits. Its combination of high permeability, low coercivity, and thermal stability makes it an essential alloy for precision sensors, weak-signal transformers, industrial electronics, and aerospace systems.
DLX continues to supply high-purity, application-optimized 4J43 wire to global customers who rely on consistent magnetic performance. As magnetic circuit efficiency becomes more important across industries, DLX remains committed to providing stable, customizable, and technically supported materials that improve device accuracy and reduce energy loss.
About Us:
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships
We support all kinds of testing:
FAQs:
1. What is 4J43 high-permeability wire?
4J43 is a soft magnetic alloy with around 43% nickel. It offers high permeability, low coercivity, and excellent magnetic stability, making it ideal for low-loss magnetic circuits and precision electronic applications.
2. Why is 4J43 wire preferred in low-loss magnetic circuits?
Its low hysteresis loss and stable response under weak magnetic fields reduce energy consumption and improve signal accuracy, which is essential for transformers, sensors, and magnetic shielding.
3. What sizes does 4J43 wire typically come in?
DLX supplies 4J43 wire from 0.03 mm up to 3 mm, including fine wire, annealed wire, and custom-shaped formats depending on customer requirements.
4. Can 4J43 wire withstand high temperatures?
Yes, the alloy maintains stable magnetic properties up to approximately 350–400°C, making it suitable for demanding environments in aerospace, automotive, and industrial electronics.
5. Is 4J43 wire easy to process?
4J43 can be drawn, welded, wound, and annealed. DLX adjusts the mechanical condition according to the customer’s application needs, ensuring predictable magnetic performance.
6. What industries rely on 4J43 high-permeability wire?
Industries include precision measurement, aerospace navigation, automotive sensors, industrial automation, weak-signal transformers, and electronic control systems.
7. How does 4J43 compare to higher nickel soft magnetic alloys?
It delivers strong permeability with better mechanical strength and cost efficiency than very high-nickel alloys, while providing excellent dimensional stability.
8. What advantages does DLX offer in 4J43 production?
DLX focuses on vacuum-melted purity, precise diameter control, customized magnetic annealing, consistent batch-to-batch permeability, fast delivery, and real engineering support.
