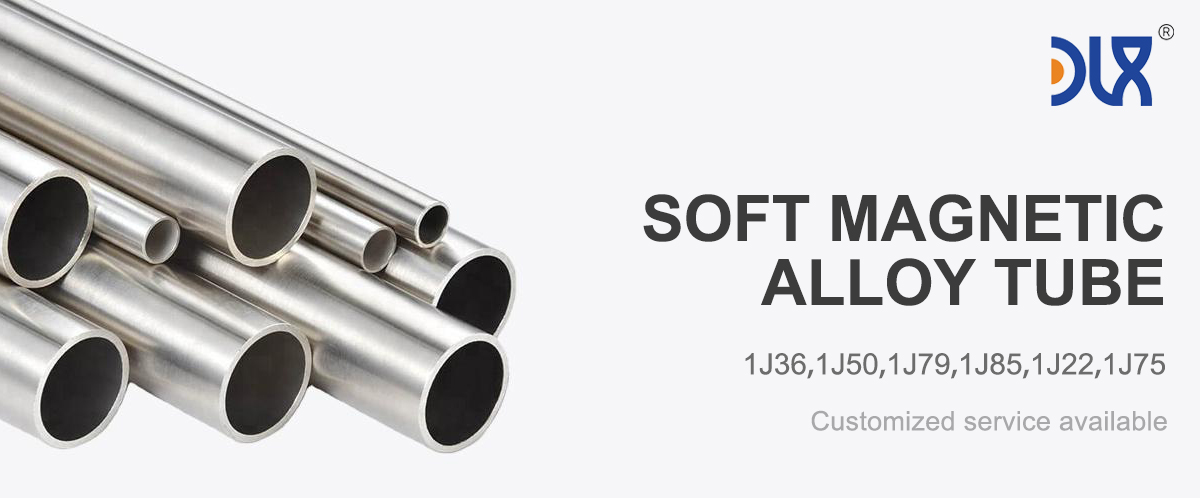

Our 1J36 soft magnetic tube is built for rock-solid electromagnetic performance. Made from a nickel-iron alloy with a dash of manganese and silicon, this material delivers exceptional magnetic stability with a high saturation magnetization of ~1.5T and low coercivity. It’s designed to keep eddy current losses low, with an electrical resistivity of ~10⁻⁷ Ω·m, making it a go-to for applications up to 200KHz. Mechanically, it’s no slouch either, boasting a tensile strength of ~450MPa, yield strength of ~280MPa, and 25% elongation. Whether you need reliable shielding or precision sensors, our 1J36 tubes are tough, versatile, and ready to perform.
For more details, pls directly contact us.
The soft magnetic materials market is on fire, projected to reach $90 billion by 2027 with a CAGR of 9.2%, driven by demand for high-performance components in aerospace, automotive, and renewable energy. The shift toward electrification, especially in EVs and smart grids, is pushing the need for materials that can handle extreme conditions without losing magnetic stability. Add in the rise of IoT devices and 5G networks, and the demand for durable, low-loss alloys like 1J36 is skyrocketing. We’re seeing trends like advanced manufacturing techniques and AI-driven material design reshaping the industry, and our 1J36 tubes are perfectly positioned to meet these evolving needs.
Alloy Composition Table
|
Alloy Grades |
C |
S |
P |
Mn |
Si |
Ni |
Cr |
Co |
Mo |
Cu |
Al |
Nb |
Fe |
Other Elements |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1J06 |
0.04 |
0.015 |
0.015 |
≤0.10 |
≤0.15 |
- |
- |
- |
- |
- |
5.5-6.5 |
- |
Rest |
- |
|
1J12 |
0.03 |
0.015 |
0.015 |
≤0.10 |
≤0.15 |
- |
- |
- |
- |
- |
11.6-12.4 |
- |
Rest |
- |
|
1J17 |
0.03 |
0.02 |
0.02 |
≤0.60 |
≤0.20 |
- |
15.5-16.5 |
- |
- |
- |
- |
- |
Rest |
- |
|
1J18 |
0.03 |
0.02 |
0.02 |
0.3-0.7 |
≤0.15 |
0.5-0.7 |
17-18.5 |
- |
- |
- |
- |
- |
Rest |
Ti: 0.3-0.7 |
|
1J22 |
0.04 |
0.02 |
0.02 |
≤0.3 |
≤0.3 |
≤0.5 |
- |
49-51 |
- |
≤0.2 |
- |
- |
Rest |
V: 0.8-1.8 |
|
1J30 |
0.04 |
0.02 |
0.02 |
≤0.40 |
≤0.30 |
29.5-30.5 |
- |
- |
- |
- |
- |
- |
Rest |
- |
|
1J36 |
0.03 |
0.02 |
0.02 |
≤0.60 |
≤0.20 |
35.0-37.0 |
- |
- |
- |
- |
- |
- |
Rest |
- |
|
1J38 |
0.03 |
0.05 |
0.02 |
0.3-0.6 |
0.15-0.3 |
37.5-38.5 |
12.5-13.5 |
- |
- |
- |
- |
- |
Rest |
- |
|
1J46 |
0.03 |
0.02 |
0.02 |
0.6-1.1 |
0.15-0.3 |
45.0-46.5 |
- |
- |
- |
≤0.2 |
- |
- |
Rest |
- |
|
1J50 |
0.03 |
0.02 |
0.02 |
0.3-0.6 |
0.15-0.3 |
49-50.5 |
- |
- |
- |
≤0.2 |
- |
- |
Rest |
- |
|
1J51 |
0.03 |
0.02 |
0.02 |
0.3-0.6 |
0.15-0.3 |
49-50.5 |
- |
- |
- |
≤0.2 |
- |
- |
Rest |
- |
|
1J54 |
0.03 |
0.02 |
0.02 |
0.3-0.6 |
1.1-1.4 |
49.5-51 |
3.8-4.2 |
- |
- |
≤0.2 |
- |
- |
Rest |
- |
|
1J76 |
0.03 |
0.02 |
0.02 |
0.3-0.6 |
0.15-0.3 |
75.0-76.5 |
1.8-2.2 |
- |
- |
4.8-5.2 |
- |
- |
Rest |
- |
|
1J77 |
0.03 |
0.02 |
0.02 |
0.3-0.6 |
0.15-0.3 |
75.5-78 |
- |
- |
3.9-4.5 |
4.8-6.0 |
- |
- |
Rest |
- |
|
1J79 |
0.03 |
0.02 |
0.02 |
0.6-1.10 |
0.3-0.5 |
78.5-80.0 |
- |
- |
3.8-4.1 |
≤0.2 |
- |
- |
Rest |
- |
|
1J80 |
0.03 |
0.02 |
0.02 |
0.6-1.10 |
1.1-1.5 |
79.0-81.5 |
2.6-3.0 |
- |
- |
≤0.2 |
- |
- |
Rest |
- |
|
1J85 |
0.03 |
0.02 |
0.02 |
0.3-0.60 |
0.15-0.3 |
79.0-81.0 |
- |
- |
4.8-5.2 |
≤0.2 |
- |
- |
Rest |
- |
|
1J87 |
0.03 |
0.02 |
0.02 |
0.3-0.6 |
≤0.3 |
78.5-80.5 |
- |
- |
1.6-2.2 |
- |
- |
6.5-7.5 |
Rest |
- |
For more details, pls directly contact us.
Our 1J36 soft magnetic tubes are a powerhouse across industries. In aerospace, they’re used for electromagnetic shielding and sensors, ensuring precision in harsh environments. Automotive applications, especially in EVs, rely on them for stable motor cores and power electronics. Telecommunications benefits from their use in high-frequency transformers, critical for 5G and beyond. Renewable energy systems, like wind and solar inverters, leverage 1J36 for efficient, reliable performance. From medical imaging to industrial automation, these tubes deliver the durability and stability needed for cutting-edge tech.
We know there are other players in the Soft Magnetic Alloy game, but our 1J36 tubes stand tall. Our advanced production process ensures unmatched consistency, with every tube optimized for magnetic stability and mechanical strength. Unlike some alternatives, our tubes excel in extreme conditions, maintaining performance from -40°C to 200°C. We also prioritize ease of use—our 1J36 is a breeze to machine and weld, saving you time and costs in production. Plus, our commitment to innovation means we’re constantly refining our alloys to stay ahead of industry demands. You won’t get that kind of dedication everywhere.
|
Parameter |
1J36 Alloy |
Silicon Steel |
Permalloy |
Soft Ferrites |
|---|---|---|---|---|
|
Magnetic Permeability |
Moderate (~5,000) |
Moderate (~2,000-5,000) |
Very High (~100,000) |
Low (~1,000-2,000) |
|
Coercivity (A/m) |
Very Low (~20-50) |
Moderate (~50-100) |
Very Low (~10-20) |
Low (~100-500) |
|
Saturation Magnetization (T) |
~1.5 |
~2.0 |
~0.8-1.6 |
~0.4-0.5 |
|
Electrical Resistivity (Ω·m) |
~10⁻⁷ |
~10⁻⁸ |
~10⁻⁷ |
~10⁶ |
|
Eddy Current Loss |
Low (stable up to 200KHz) |
Moderate |
Low |
Very Low (high-frequency use) |
|
Mechanical Strength (MPa) |
Tensile: ~450, Yield: ~280 |
Tensile: ~500, Yield: ~300 |
Tensile: ~400, Yield: ~200 |
Brittle, low strength |
|
Machinability |
Excellent |
Good |
Good |
Poor |
|
Typical Applications |
Shielding, sensors, transformers |
Motor cores, transformers |
Magnetic shielding, sensors |
High-frequency transformers |
Our 1J36 soft magnetic tubes are engineered for durability and stability, making them the perfect fit for high-stakes electromagnetic applications. With top-tier magnetic properties, robust mechanical strength, and versatility across industries, they’re built to power the future. We’re not just keeping pace with market trends—we’re driving them, with state-of-the-art manufacturing and a focus on quality. Whether you’re designing aerospace sensors or EV motors, our 1J36 tubes deliver the performance you need to succeed.
About Us:
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships
We support all kinds of testing:
FAQs
-
What is the composition of the 1J36 soft magnetic tube?
It’s made of a nickel-iron alloy with trace amounts of manganese and silicon, optimized for high magnetic stability and durability. -
What are the primary uses of 1J36 tubes?
They’re used in electromagnetic shielding, precision sensors, and high-performance transformers in industries like aerospace and electronics. -
Why is 1J36 ideal for stable electromagnetic performance?
Its low coercivity and high saturation magnetization ensure consistent performance under varying magnetic fields. -
How does 1J36 perform in extreme conditions?
It maintains magnetic stability across a wide temperature range, from -40°C to 200°C, perfect for harsh environments. -
What are the mechanical properties of 1J36 tubes?
They offer a tensile strength of ~450MPa, yield strength of ~280MPa, and elongation of about 25%. -
Is 1J36 easy to process for manufacturing?
Absolutely, it’s highly machinable and weldable, allowing for precise shaping and integration into complex systems. -
How does 1J36 contribute to device reliability?
Its stable magnetic properties reduce performance drift, ensuring long-term reliability in critical applications. -
Which industries benefit most from 1J36 tubes?
Aerospace, automotive, telecommunications, and renewable energy, particularly in high-reliability electromagnetic components.
