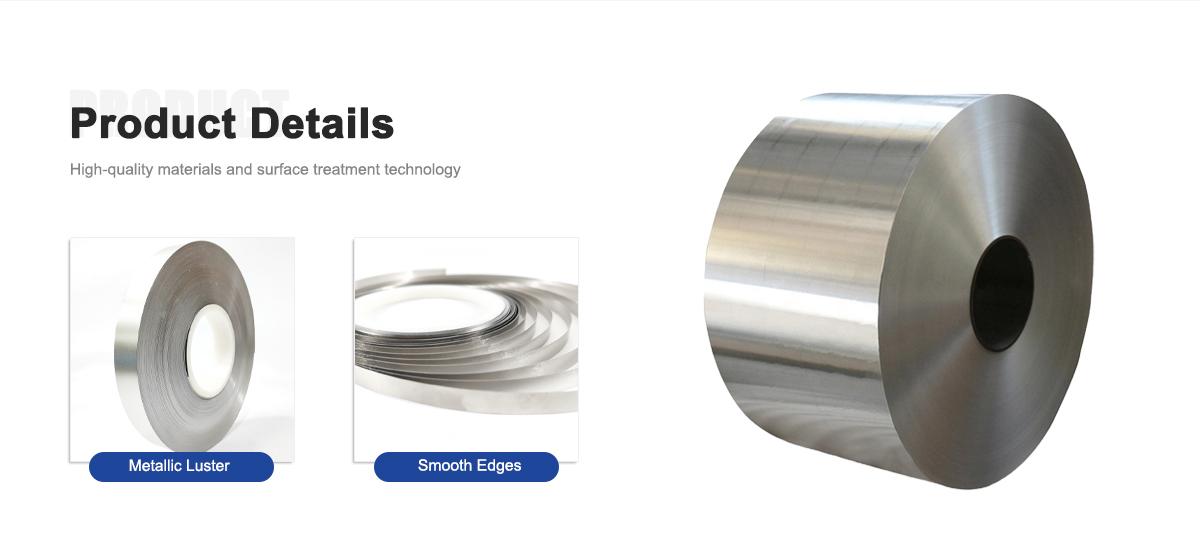

Soft magnetic alloys are the backbone of many technologies that power our modern world. Among these, 1J75 stands out as one of the most widely used materials for electromagnetic devices and sensors. Known for its exceptional permeability and very low coercivity, 1J75 alloy strip (DIN 2.4510) delivers both precision and stability across industries where magnetic performance is critical.
For more details, pls directly contact us.
1J75 is a nickel-iron soft magnetic alloy containing around 75% nickel. This unique balance of composition provides extremely high permeability, making it an ideal choice where magnetic fields must be guided, concentrated, or shielded. Its low coercive force means it can be easily magnetized and demagnetized, ensuring efficiency in energy-sensitive applications. With a density of approximately 8.7 g/cm³ and operational reliability up to 500°C, 1J75 combines strength, stability, and durability.
Alloy Composition Table
Alloy Grades | C | S | P | Mn | Si | Ni | Cr | Co | Mo | Cu | Al | Nb | Fe | Other Elements |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1J06 | 0.04 | 0.015 | 0.015 | ≤0.10 | ≤0.15 | - | - | - | - | - | 5.5-6.5 | - | Rest | - |
1J12 | 0.03 | 0.015 | 0.015 | ≤0.10 | ≤0.15 | - | - | - | - | - | 11.6-12.4 | - | Rest | - |
1J17 | 0.03 | 0.02 | 0.02 | ≤0.60 | ≤0.20 | - | 15.5-16.5 | - | - | - | - | - | Rest | - |
1J18 | 0.03 | 0.02 | 0.02 | 0.3-0.7 | ≤0.15 | 0.5-0.7 | 17-18.5 | - | - | - | - | - | Rest | Ti: 0.3-0.7 |
0.04 | 0.02 | 0.02 | ≤0.3 | ≤0.3 | ≤0.5 | - | 49-51 | - | ≤0.2 | - | - | Rest | V: 0.8-1.8 | |
1J30 | 0.04 | 0.02 | 0.02 | ≤0.40 | ≤0.30 | 29.5-30.5 | - | - | - | - | - | - | Rest | - |
1J36 | 0.03 | 0.02 | 0.02 | ≤0.60 | ≤0.20 | 35.0-37.0 | - | - | - | - | - | - | Rest | - |
1J38 | 0.03 | 0.05 | 0.02 | 0.3-0.6 | 0.15-0.3 | 37.5-38.5 | 12.5-13.5 | - | - | - | - | - | Rest | - |
1J46 | 0.03 | 0.02 | 0.02 | 0.6-1.1 | 0.15-0.3 | 45.0-46.5 | - | - | - | ≤0.2 | - | - | Rest | - |
1J50 | 0.03 | 0.02 | 0.02 | 0.3-0.6 | 0.15-0.3 | 49-50.5 | - | - | - | ≤0.2 | - | - | Rest | - |
1J51 | 0.03 | 0.02 | 0.02 | 0.3-0.6 | 0.15-0.3 | 49-50.5 | - | - | - | ≤0.2 | - | - | Rest | - |
1J54 | 0.03 | 0.02 | 0.02 | 0.3-0.6 | 1.1-1.4 | 49.5-51 | 3.8-4.2 | - | - | ≤0.2 | - | - | Rest | - |
1J76 | 0.03 | 0.02 | 0.02 | 0.3-0.6 | 0.15-0.3 | 75.0-76.5 | 1.8-2.2 | - | - | 4.8-5.2 | - | - | Rest | - |
1J77 | 0.03 | 0.02 | 0.02 | 0.3-0.6 | 0.15-0.3 | 75.5-78 | - | - | 3.9-4.5 | 4.8-6.0 | - | - | Rest | - |
0.03 | 0.02 | 0.02 | 0.6-1.10 | 0.3-0.5 | 78.5-80.0 | - | - | 3.8-4.1 | ≤0.2 | - | - | Rest | - | |
1J80 | 0.03 | 0.02 | 0.02 | 0.6-1.10 | 1.1-1.5 | 79.0-81.5 | 2.6-3.0 | - | - | ≤0.2 | - | - | Rest | - |
0.03 | 0.02 | 0.02 | 0.3-0.60 | 0.15-0.3 | 79.0-81.0 | - | - | 4.8-5.2 | ≤0.2 | - | - | Rest | - | |
1J87 | 0.03 | 0.02 | 0.02 | 0.3-0.6 | ≤0.3 | 78.5-80.5 | - | - | 1.6-2.2 | - | - | 6.5-7.5 | Rest | - |
For more details, pls directly contact us.
As industries advance, the demand for high-performance magnetic alloys continues to rise. The global shift toward electrification—especially in automotive, aerospace, and renewable energy—has created a growing market for precision alloys like 1J75.
Electronics: Miniaturization of components and higher performance requirements in sensors, inductors, and shielding demand high-permeability materials.
Aerospace: Navigation and communication systems rely on stable soft magnetic alloys that can perform under extreme conditions.
Automotive: Electric vehicles require precise sensor systems and electromagnetic components to ensure efficient power management and safety.
Medical Devices: Imaging equipment, diagnostic tools, and electromagnetic shielding in sensitive instruments increasingly use alloys like 1J75.
In addition, the rising focus on electromagnetic interference (EMI) reduction in consumer electronics, healthcare equipment, and communication infrastructure ensures steady growth in demand for alloys with the precision properties that 1J75 offers.
Applications of 1J75 Alloy Strip
Sensors: Magnetic sensors, current detectors, and position measurement devices.
Electromagnetic Devices: Used in coils, relays, and precision actuators.
Magnetic Shielding: Provides protection for sensitive electronics against external electromagnetic interference.
Transformers: Especially instrument transformers where low core loss and high permeability are essential.
Medical Equipment: MRI shielding, diagnostic devices, and precision instruments.
Aerospace Systems: Ensures stability in navigation and control equipment.
Company Comparison and DLX Advantage
Not all suppliers of 1J75 alloy strip are created equal. At DLX, we take pride in being more than just a source of materials—we are a partner in innovation and performance.
Here’s why DLX stands above the rest:
Strict Quality Control: Each production batch undergoes rigorous testing to guarantee consistent permeability, coercivity, and mechanical stability.
Custom Dimensions: We supply strips, coils, or sheets in tailored specifications to fit customer requirements.
Global Reach: Our logistics and distribution network ensures timely deliveries worldwide.
Engineering Expertise: DLX engineers work closely with customers to design solutions that optimize performance and cost-efficiency.
Reliable Partnerships: Our commitment to stability and support means clients can depend on us for long-term supply security.
By combining technical know-how, customization, and service excellence, DLX ensures that customers gain not only high-quality 1J75 alloy strips but also confidence in their projects’ success.
Comparison Table
| Parameter | 1J75 Alloy (DIN 2.4510) | Conventional Electrical Steel |
|---|---|---|
| Composition | ~75% Ni, balance Fe | Fe with Si (~3%) |
| Magnetic Permeability | Very high | Medium |
| Coercive Force | Very low | Higher |
| Density | ~8.7 g/cm³ | ~7.6 g/cm³ |
| Saturation Induction | ~0.8 T | ~2.0 T |
| Corrosion Resistance | Good | Moderate |
| Max Operating Temp | ~500°C | ~350°C |
| Applications | Sensors, shielding, transformers, coils | Motors, transformers, generators |
Several factors are shaping the market for soft magnetic alloys like 1J75:
Growth of IoT and smart electronics requiring smaller, more precise sensors.
Expansion of electric vehicles pushing demand for efficient electromagnetic materials.
Advancements in aerospace and defense that rely on stable, high-performance alloys.
Increasing need for EMI shielding in medical and consumer electronics.
Renewable energy integration requiring high-efficiency transformers and magnetic components.
At DLX, we continuously adapt to these changes by enhancing our production capabilities, expanding customization options, and supporting client innovation.
Conclusion
1J75 soft magnetic strip (DIN 2.4510) remains one of the most reliable materials for electromagnetic devices and sensors. With unmatched permeability, low coercivity, and durability, it provides the foundation for precision applications across industries. As a trusted supplier, DLX delivers not only high-quality 1J75 alloy strips but also the expertise, customization, and reliability needed to succeed in a competitive global market. Partnering with DLX means choosing long-term stability, superior material performance, and dedicated support for your critical applications.
About Us:

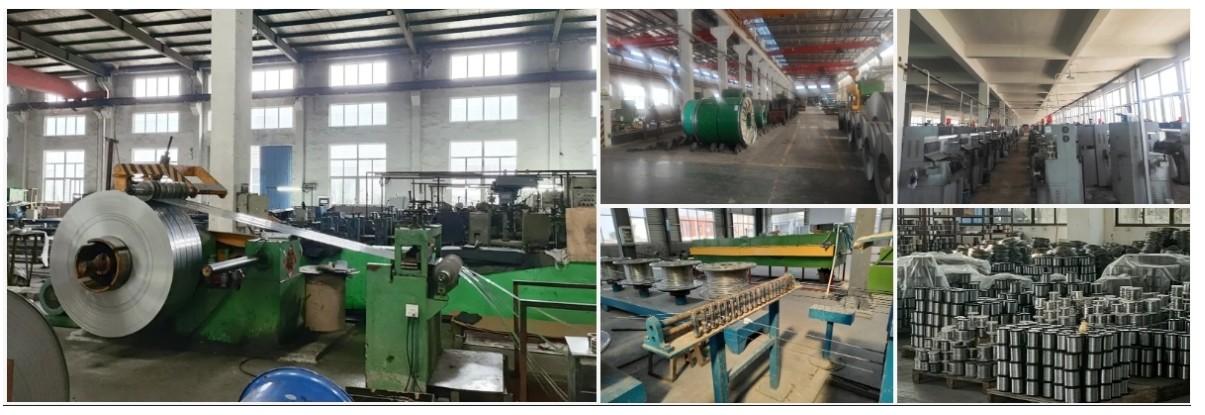

Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships

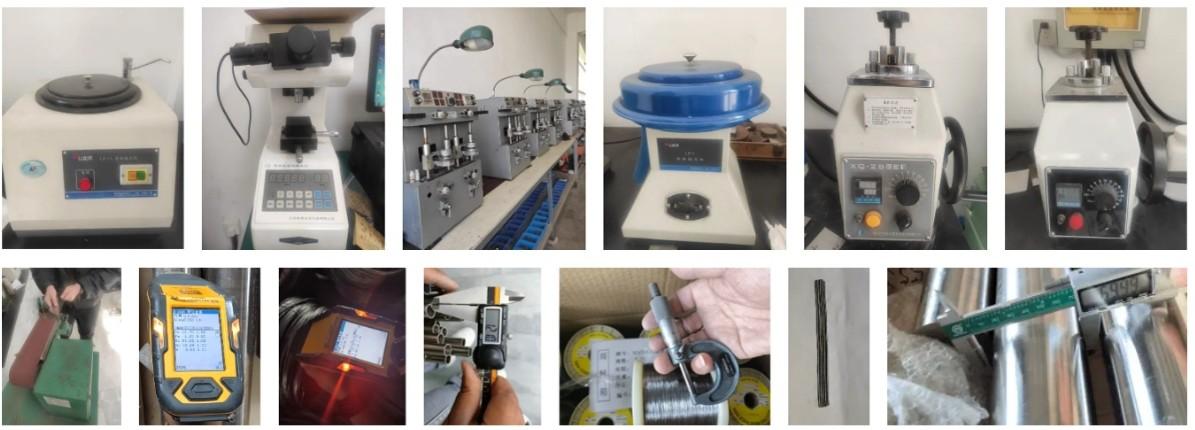

We support all kinds of testing:
FAQs
What is the chemical composition of 1J75 alloy?
Nickel ~75%, balance iron.What standard does 1J75 follow?
DIN 2.4510.What are the key properties of 1J75 alloy?
High permeability, low coercivity, stable magnetic performance.What is the density of 1J75?
About 8.7 g/cm³.What temperature range can 1J75 operate in?
Up to 500°C.What applications use 1J75 strips?
Sensors, electromagnetic devices, transformers, magnetic shielding.Which industries rely on 1J75 alloy?
Electronics, aerospace, automotive, medical devices.Why choose DLX as a supplier of 1J75 alloy strip?
Consistent quality, custom dimensions, engineering support, reliable delivery.
