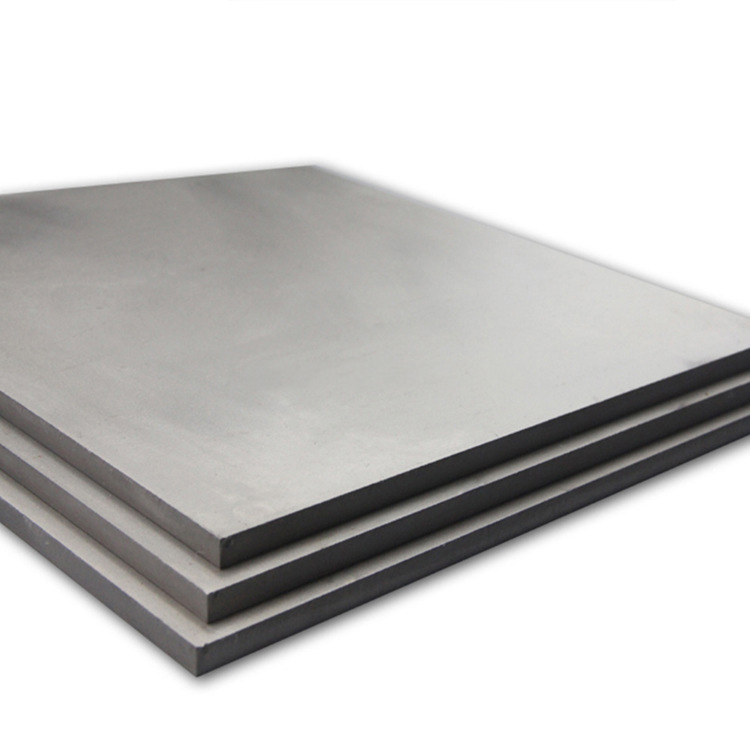

1J36 Soft Magnetic Plate: High Permeability for Transformer Cores

1J36 Soft Magnetic Plate: High Permeability for Transformer Cores

Brand Name:DLX   Place of Origin:China Jiangsu    Delivery Time:7-15 Days
Certification:CE,ROHS   Supply Ability:500 tons per month
Payment Terms:L/C,T/T,Western Union,MoneyGram

Classification：
Message inquiry

Product Introduction

Our 1J36 Soft Magnetic Plate is a high-performance iron-nickel alloy engineered for applications demanding superior magnetic permeability and low core losses. With approximately 36% nickel and the balance iron, this alloy delivers exceptional magnetic properties, making it ideal for transformer cores, magnetic shielding, and precision sensors. Its high permeability (up to 0.02 H/m) and low coercive force ensure efficient energy transfer, perfect for industries aiming for compact, high-efficiency electromagnetic systems.

The soft magnetic materials market is on a steady rise, driven by the growing demand for energy-efficient transformers, electric vehicles (EVs), and renewable energy systems. As industries prioritize sustainability and compact designs, high-permeability alloys like 1J36 are becoming critical. Market trends indicate robust growth through 2030, with power generation, automotive, and electronics sectors leading the charge. Challenges like material cost and processing precision are being met with advanced manufacturing techniques, where we shine with our expertise in precision rolling and annealing to optimize magnetic performance.

Our 1J36 Soft Magnetic Plate excels in a range of high-precision applications:

  • Transformer Cores: High permeability and low core losses ensure efficient power transfer in compact designs.

  • Magnetic Shielding: Ideal for protecting sensitive electronics from electromagnetic interference.

  • Inductors and Chokes: Low coercive force enhances performance in high-frequency circuits.

  • Sensors: High sensitivity makes it perfect for magnetic field detection in precision instruments.

  • Renewable Energy Systems: Used in inverters and converters for solar and wind energy, boosting efficiency.

Alloy Composition Table

Alloy Grades

C

S

P

Mn

Si

Ni

Cr

Co

Mo

Cu

Al

Nb

Fe

Other Elements

1J06

0.04

0.015

0.015

≤0.10

≤0.15

-

-

-

-

-

5.5-6.5

-

Rest

-

1J12

0.03

0.015

0.015

≤0.10

≤0.15

-

-

-

-

-

11.6-12.4

-

Rest

-

1J17

0.03

0.02

0.02

≤0.60

≤0.20

-

15.5-16.5

-

-

-

-

-

Rest

-

1J18

0.03

0.02

0.02

0.3-0.7

≤0.15

0.5-0.7

17-18.5

-

-

-

-

-

Rest

Ti: 0.3-0.7

1J22

0.04

0.02

0.02

≤0.3

≤0.3

≤0.5

-

49-51

-

≤0.2

-

-

Rest

V: 0.8-1.8

1J30

0.04

0.02

0.02

≤0.40

≤0.30

29.5-30.5

-

-

-

-

-

-

Rest

-

1J36

0.03

0.02

0.02

≤0.60

≤0.20

35.0-37.0

-

-

-

-

-

-

Rest

-

1J38

0.03

0.05

0.02

0.3-0.6

0.15-0.3

37.5-38.5

12.5-13.5

-

-

-

-

-

Rest

-

1J46

0.03

0.02

0.02

0.6-1.1

0.15-0.3

45.0-46.5

-

-

-

≤0.2

-

-

Rest

-

1J50

0.03

0.02

0.02

0.3-0.6

0.15-0.3

49-50.5

-

-

-

≤0.2

-

-

Rest

-

1J51

0.03

0.02

0.02

0.3-0.6

0.15-0.3

49-50.5

-

-

-

≤0.2

-

-

Rest

-

1J54

0.03

0.02

0.02

0.3-0.6

1.1-1.4

49.5-51

3.8-4.2

-

-

≤0.2

-

-

Rest

-

1J76

0.03

0.02

0.02

0.3-0.6

0.15-0.3

75.0-76.5

1.8-2.2

-

-

4.8-5.2

-

-

Rest

-

1J77

0.03

0.02

0.02

0.3-0.6

0.15-0.3

75.5-78

-

-

3.9-4.5

4.8-6.0

-

-

Rest

-

1J79

0.03

0.02

0.02

0.6-1.10

0.3-0.5

78.5-80.0

-

-

3.8-4.1

≤0.2

-

-

Rest

-

1J80

0.03

0.02

0.02

0.6-1.10

1.1-1.5

79.0-81.5

2.6-3.0

-

-

≤0.2

-

-

Rest

-

1J85

0.03

0.02

0.02

0.3-0.60

0.15-0.3

79.0-81.0

-

-

4.8-5.2

≤0.2

-

-

Rest

-

1J87

0.03

0.02

0.02

0.3-0.6

≤0.3

78.5-80.5

-

-

1.6-2.2

-

-

6.5-7.5

Rest

-

For more details, pls directly  contact us.

Our 1J36 Soft Magnetic Plate stands out in the market. We use advanced vacuum induction melting and controlled annealing to achieve unmatched magnetic permeability and consistency. Our plates are available in custom sizes and thicknesses, tailored to your needs, with lead times as short as 15 days. Backed by ISO 9001 certification, our quality control ensures every plate meets stringent standards. Our dedicated R&D team continuously improves alloy performance, reducing hysteresis losses and enhancing durability. We also offer free samples (shipping costs apply) and top-notch customer support to keep your projects on track.

Comparison Table

Parameter

Our 1J36 Soft Magnetic Plate

Competitor Alloy

Magnetic Permeability

0.02 H/m

0.015-0.018 H/m

Coercive Force

0.2 Oe

0.3-0.5 Oe

Core Loss

Very low (optimized for AC)

Moderate

Curie Temperature

400°C

350-380°C

Yield Strength

280-350 MPa

250-320 MPa

Processing

Vacuum melting, custom sizes

Standard processing

Lead Time

15-20 days

25-30 days

Quality Certification

ISO 9001

Varies

Why Choose Our 1J36 Soft Magnetic Plate?

Our 1J36 Soft Magnetic Plate is designed for peak performance, offering unmatched permeability and efficiency for transformer cores and shielding applications. With years of expertise, we’ve perfected our production to deliver a reliable, cost-effective product. Whether you’re building high-efficiency transformers or shielding sensitive electronics, our plates give you the edge in performance and precision. Reach out today to see how our 1J36 Soft Magnetic Plate can power your next project!

About Us:

Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.

For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.

Incoloy 800 Plate for High-Temperature Furnace Corrosion Resistance

Client Visits

Building Stronger Partnerships

Incoloy 800 Plate for High-Temperature Furnace Corrosion Resistance

We support all kinds of testing:

Incoloy 800 Plate for High-Temperature Furnace Corrosion Resistance

Incoloy 800 Plate for High-Temperature Furnace Corrosion Resistance

FAQs:

  1. What is 1J36 Soft Magnetic Plate made of?
    It’s an iron-nickel alloy with ~36% nickel and iron, optimized for high magnetic permeability.

  2. What are the key properties of 1J36?
    It offers high permeability (0.02 H/m), low coercive force (0.2 Oe), and low core losses for efficient magnetic performance.

  3. Which industries use 1J36 Soft Magnetic Plates?
    Power generation, electronics, automotive, renewable energy, and aerospace rely on it for transformers and shielding.

  4. Is 1J36 suitable for high-frequency applications?
    Yes, its low core losses make it ideal for high-frequency transformers and inductors.

  5. What forms do you offer for 1J36?
    We provide plates, sheets, strips, and custom shapes to match your specifications.

  6. How does 1J36 improve transformer efficiency?
    Its high permeability and low losses reduce energy waste, enabling compact, high-performance transformers.

  7. Can it be used for magnetic shielding?
    Absolutely, its high permeability effectively redirects magnetic fields, protecting sensitive electronics.

  8. How can I request a sample?
    Contact us for a free sample (buyer covers shipping), typically delivered within 15 days of payment.
