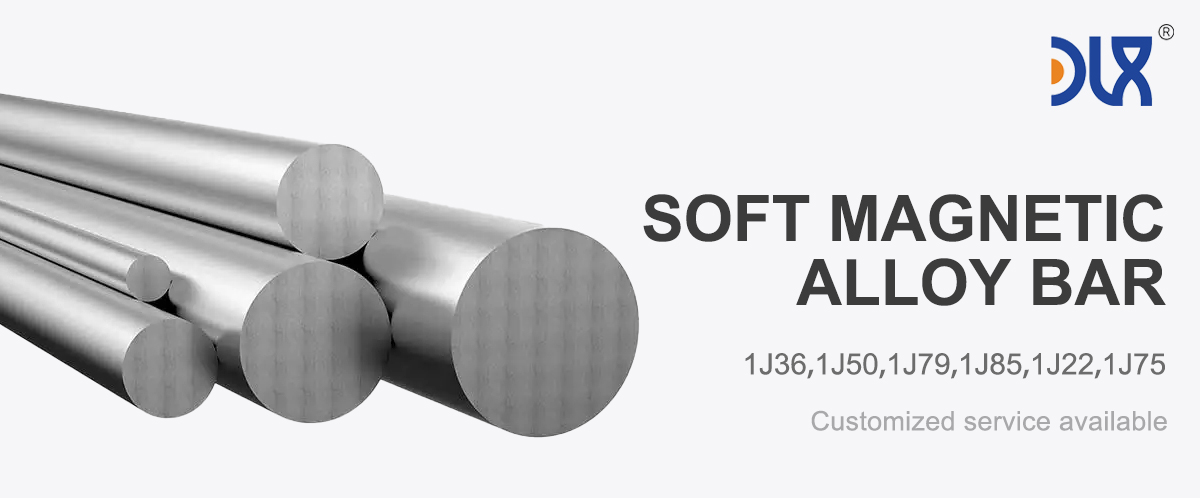

Our 1J85 Soft Magnetic Alloy bar is a top-tier choice for RF transformers. Crafted from a nickel-iron blend with copper, molybdenum, and silicon, it delivers ultra-high magnetic permeability (~100,000) and low coercivity for exceptional signal clarity. With a saturation magnetization of ~0.8 T and high electrical resistivity (~6×10⁻⁷ Ω·m), it minimizes energy losses in high-frequency setups. Its mechanical stats are solid too—420 MPa tensile strength and 28% elongation—making it easy to machine and reliable in tough conditions. For RF transformers, sensors, or shielding, our 1J85 bar is built to perform.
For more details, pls directly contact us.
|
Alloy Grades |
C |
S |
P |
Mn |
Si |
Ni |
Cr |
Co |
Mo |
Cu |
Al |
Nb |
Fe |
Other Elements |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1J06 |
0.04 |
0.015 |
0.015 |
≤0.10 |
≤0.15 |
- |
- |
- |
- |
- |
5.5-6.5 |
- |
Rest |
- |
|
1J12 |
0.03 |
0.015 |
0.015 |
≤0.10 |
≤0.15 |
- |
- |
- |
- |
- |
11.6-12.4 |
- |
Rest |
- |
|
1J17 |
0.03 |
0.02 |
0.02 |
≤0.60 |
≤0.20 |
- |
15.5-16.5 |
- |
- |
- |
- |
- |
Rest |
- |
|
1J18 |
0.03 |
0.02 |
0.02 |
0.3-0.7 |
≤0.15 |
0.5-0.7 |
17-18.5 |
- |
- |
- |
- |
- |
Rest |
Ti: 0.3-0.7 |
|
1J22 |
0.04 |
0.02 |
0.02 |
≤0.3 |
≤0.3 |
≤0.5 |
- |
49-51 |
- |
≤0.2 |
- |
- |
Rest |
V: 0.8-1.8 |
|
1J30 |
0.04 |
0.02 |
0.02 |
≤0.40 |
≤0.30 |
29.5-30.5 |
- |
- |
- |
- |
- |
- |
Rest |
- |
|
1J36 |
0.03 |
0.02 |
0.02 |
≤0.60 |
≤0.20 |
35.0-37.0 |
- |
- |
- |
- |
- |
- |
Rest |
- |
|
1J38 |
0.03 |
0.05 |
0.02 |
0.3-0.6 |
0.15-0.3 |
37.5-38.5 |
12.5-13.5 |
- |
- |
- |
- |
- |
Rest |
- |
|
1J46 |
0.03 |
0.02 |
0.02 |
0.6-1.1 |
0.15-0.3 |
45.0-46.5 |
- |
- |
- |
≤0.2 |
- |
- |
Rest |
- |
|
1J50 |
0.03 |
0.02 |
0.02 |
0.3-0.6 |
0.15-0.3 |
49-50.5 |
- |
- |
- |
≤0.2 |
- |
- |
Rest |
- |
|
1J51 |
0.03 |
0.02 |
0.02 |
0.3-0.6 |
0.15-0.3 |
49-50.5 |
- |
- |
- |
≤0.2 |
- |
- |
Rest |
- |
|
1J54 |
0.03 |
0.02 |
0.02 |
0.3-0.6 |
1.1-1.4 |
49.5-51 |
3.8-4.2 |
- |
- |
≤0.2 |
- |
- |
Rest |
- |
|
1J76 |
0.03 |
0.02 |
0.02 |
0.3-0.6 |
0.15-0.3 |
75.0-76.5 |
1.8-2.2 |
- |
- |
4.8-5.2 |
- |
- |
Rest |
- |
|
1J77 |
0.03 |
0.02 |
0.02 |
0.3-0.6 |
0.15-0.3 |
75.5-78 |
- |
- |
3.9-4.5 |
4.8-6.0 |
- |
- |
Rest |
- |
|
1J79 |
0.03 |
0.02 |
0.02 |
0.6-1.10 |
0.3-0.5 |
78.5-80.0 |
- |
- |
3.8-4.1 |
≤0.2 |
- |
- |
Rest |
- |
|
1J80 |
0.03 |
0.02 |
0.02 |
0.6-1.10 |
1.1-1.5 |
79.0-81.5 |
2.6-3.0 |
- |
- |
≤0.2 |
- |
- |
Rest |
- |
|
1J85 |
0.03 |
0.02 |
0.02 |
0.3-0.60 |
0.15-0.3 |
79.0-81.0 |
- |
- |
4.8-5.2 |
≤0.2 |
- |
- |
Rest |
- |
|
1J87 |
0.03 |
0.02 |
0.02 |
0.3-0.6 |
≤0.3 |
78.5-80.5 |
- |
- |
1.6-2.2 |
- |
- |
6.5-7.5 |
Rest |
- |
For more details, pls directly contact us.
The soft magnetic materials market is on a hot streak, expected to hit $125.8 billion by 2031 with a 9.8% CAGR from 2024. The telecom boom, especially 5G, is driving demand for high-frequency materials like 1J85 to power RF transformers and antennas. Electronics are getting smaller and smarter, with wearables and IoT devices needing compact, efficient components. Aerospace and medical sectors are also in the mix, leaning on high-permeability alloys for precision and reliability. With global 5G subscriptions hitting 1.5 billion in 2023, the need for materials that handle high frequencies is only growing. Our 1J85 alloy is perfectly positioned to meet these demands.Our 1J85 alloy bar shines in high-frequency applications. In telecommunications, it’s the backbone of RF transformers, ensuring crisp signal transmission for 5G networks. Electronics manufacturers use it for inductors and magnetic shielding in compact devices like smartphones and wearables. Aerospace relies on 1J85 for sensors and electromagnetic components that need to perform under extreme conditions. In medical devices, it powers precision equipment like MRI scanners and diagnostic tools, where stability is critical. From high-frequency circuits to sensitive shielding, 1J85 delivers unmatched performance across the board.
|
Parameter |
1J85 Alloy |
Fe-Si Alloy |
Permalloy (Fe-Ni) |
Fe-Co Alloy |
|---|---|---|---|---|
|
Magnetic Permeability |
Ultra-High (~100,000) |
Moderate (~8,000) |
High (~1,200,000 max) |
High (~10,000) |
|
Saturation Magnetization |
~0.8 T |
~2.0 T |
~0.8–1.6 T |
~2.4 T |
|
Electrical Resistivity |
~6×10⁻⁷ Ω·m |
Low (~10⁻⁸ Ω·m) |
Moderate (~10⁻⁷ Ω·m) |
Low (~10⁻⁸ Ω·m) |
|
Coercivity |
Very Low (<500 Am⁻¹) |
Moderate |
Very Low |
Moderate |
|
Tensile Strength |
~420 MPa |
~500 MPa |
~400–600 MPa |
~600 MPa |
|
Applications |
RF transformers, shielding, sensors |
Motors, transformers |
Shielding, sensors, tapes |
High-power motors, aerospace |
|
Cost |
Moderate |
Low |
High |
Very High |
|
Frequency Range |
Up to 1 MHz |
50 Hz–several hundred Hz |
Quasi-static to 1 MHz |
Low to medium frequency |
Our 1J85 soft magnetic alloy bar is a step ahead in quality and performance. Its ultra-high permeability and low energy losses make it a go-to for RF transformers, ensuring top-notch efficiency and signal integrity. We use cutting-edge vacuum melting and precision rolling to craft bars that meet your exact needs, with customizable heat treatments for peak performance. The alloy’s durability and machinability streamline production, saving you time and costs. We’re also tuned into industry trends, delivering a product that supports the latest advancements in 5G, aerospace, and medical tech. With us, you’re getting a reliable, high-performance solution backed by innovation.
Conclusion
Our 1J85 soft magnetic alloy bar is your key to high-performance RF transformers. With its stellar magnetic properties and robust design, it’s perfect for telecom, electronics, and beyond. The market’s growing fast, and we’re leading the charge with a product that’s tailored, durable, and ready for the future. Need to power up your RF designs? Our 1J85 alloy bar has you covered.
About Us:
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships
We support all kinds of testing:
FAQs
-
What is the 1J85 soft magnetic alloy bar made of?
Primarily nickel and iron, with small amounts of copper, molybdenum, and silicon for superior magnetic properties. -
What are the key properties of 1J85 alloy bars?
Ultra-high magnetic permeability (~100,000), low coercivity, high saturation magnetization (~0.8 T), and good corrosion resistance. -
What industries use 1J85 alloy bars?
Telecommunications, electronics, aerospace, and medical device manufacturing. -
What are common applications for 1J85 alloy bars?
RF transformers, magnetic shielding, high-frequency inductors, and precision sensors. -
How does 1J85 improve RF transformer efficiency?
Its high permeability and low eddy current losses ensure optimal signal integrity and minimal energy loss in high-frequency applications. -
What are the mechanical strengths of 1J85 alloy bars?
Tensile strength of ~420 MPa, yield strength of ~250 MPa, and elongation of ~28%. -
How does 1J85 perform in high-frequency environments?
Its high resistivity (~6×10⁻⁷ Ω·m) supports stable performance in RF applications up to 1 MHz. -
What manufacturing processes are used for 1J85 alloy bars?
Advanced vacuum melting, precision rolling, and tailored heat treatments for optimized magnetic and mechanical performance.
