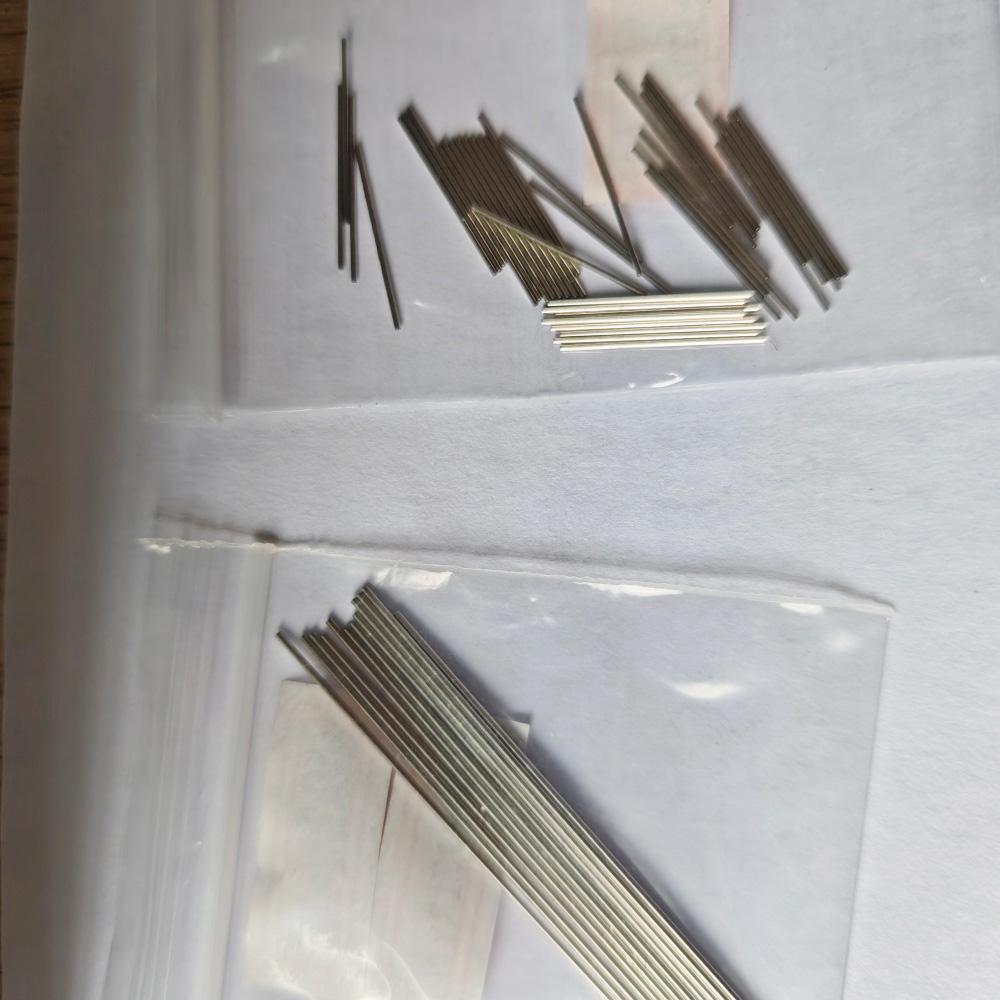

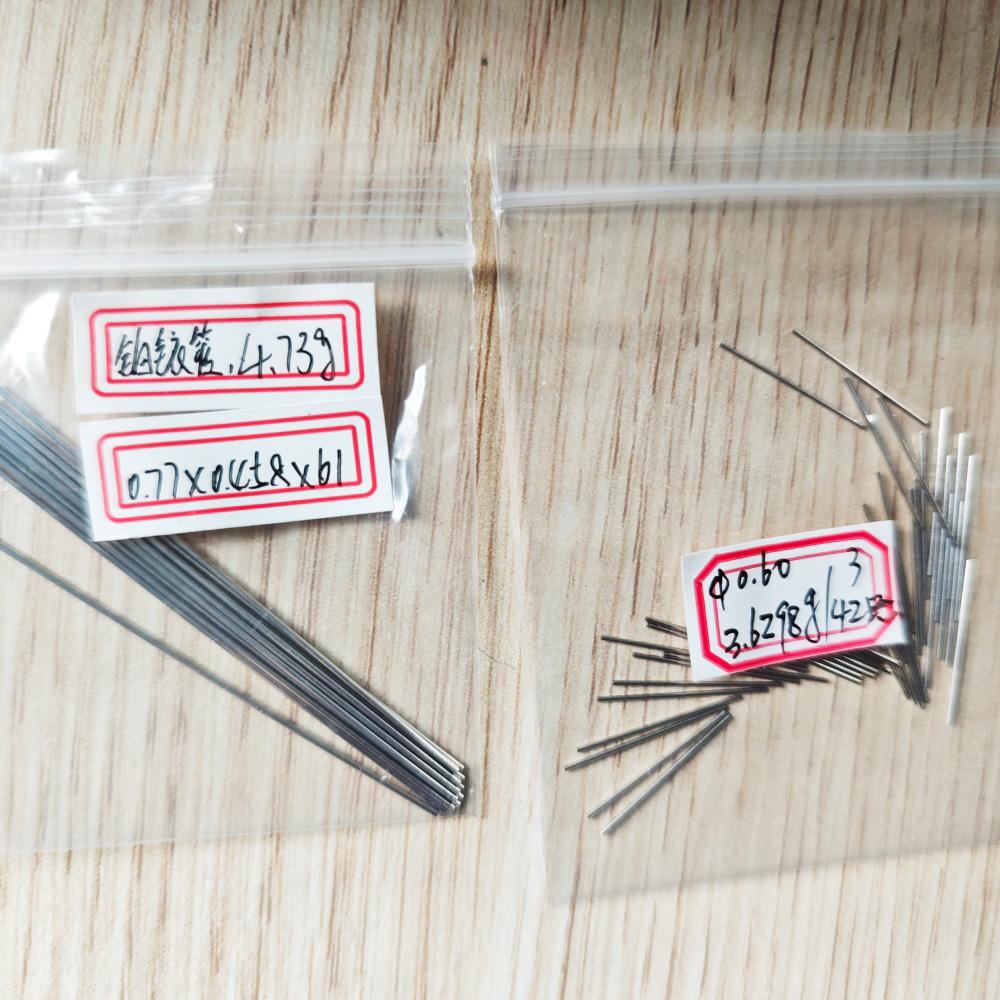

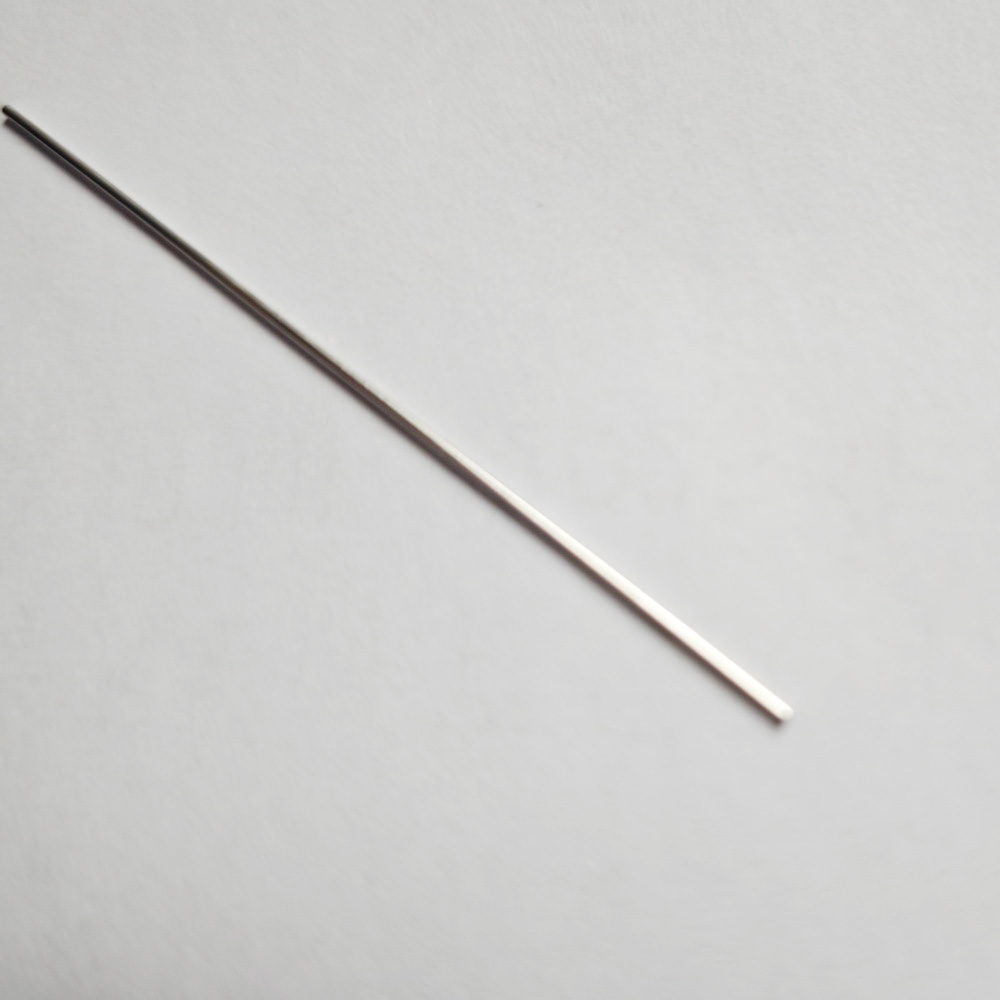

Pt-Ir Alloy Capillary Tubes for Analytical Instruments

High-temperature industrial processes demand materials that combine strength, chemical resistance, and precise dimensional stability. Platinum Iridium Tubes DIN 17744 from DLX deliver this combination, offering unmatched performance for industrial applications where failure is not an option.

Platinum-iridium alloys, typically Pt90Ir10 or Pt80Ir20, provide a synergy of platinum’s corrosion resistance and iridium’s hardness and high-temperature strength. Tubes manufactured to DIN 17744 standards ensure consistent dimensions, structural integrity, and surface quality.

DLX employs vacuum induction melting and precision tube drawing techniques to produce ultra-pure, homogeneous Pt-Ir tubes. This process ensures tight tolerances, smooth surfaces, and superior mechanical properties, critical for industrial high-temperature applications.

Platinum Iridium Tube Product Table

For more details, pls directly contact us.

Pt-Ir tubes are used wherever chemical inertness, thermal stability, and precision are critical:

• High-Temperature Sensors: Tubes maintain dimensional and mechanical stability for Thermocouple s, gas analyzers, and pressure sensors.

• Chemical Processing Equipment: Resistant to aggressive chemicals, Pt-Ir tubes are ideal for piping, conduits, and reactors handling corrosive media.

• Electrical Components: The alloy’s conductivity and corrosion resistance make it suitable for electrical connectors and high-precision conductors in high-temp environments.

• Aerospace and Power Generation: Tubes serve in fuel lines, exhaust systems, and high-performance instrumentation requiring extreme reliability.

• Laboratory Instruments: For high-temperature analytical instruments, Pt-Ir tubes provide inert, durable, and dimensionally stable components.

DLX Pt-Ir tubes guarantee performance, precision, and safety, ensuring industrial processes run smoothly even under the harshest conditions.

Industry Trends

Industries are increasingly seeking materials that withstand higher temperatures and harsher chemical environments. As industrial processes, aerospace engines, and high-temp electronics evolve, conventional materials like stainless steel and nickel alloys often fail under thermal cycling and corrosive exposure.

The demand for Pt-Ir tubes is rising due to:

• Superior oxidation and corrosion resistance

• High mechanical strength at elevated temperatures

• Consistent dimensional stability for precision instruments

Additionally, sustainability and recyclability of platinum-group metals drive adoption in industries emphasizing long-term cost-effectiveness and environmental responsibility.

Why DLX

DLX sets itself apart through precision, customization, and quality:

• Alloy Expertise: Our vacuum-melted Pt-Ir ensures consistent composition and microstructure.

• Custom Tube Manufacturing: We produce tubes to exact diameters, wall thicknesses, lengths, and tolerances.

• Advanced Drawing and Finishing: Ultra-smooth internal and external surfaces reduce wear and enhance performance.

• Rigorous Quality Control: Each batch undergoes metallurgical, dimensional, and corrosion testing, meeting DIN 17744 and international standards.

• Sustainable Practices: DLX recycles platinum-group metals to produce premium alloy tubes responsibly.

These capabilities make DLX the go-to provider for high-temperature, high-performance Pt-Ir tubes in industrial applications worldwide.

Performance Advantages

Compared to conventional metals, Pt-Ir tubes DIN 17744 offer:

• Exceptional chemical resistance: Ideal for acids, fuels, and industrial chemicals

• High-temperature stability: Maintains shape and mechanical integrity above 1000°C

• Dimensional precision: Consistent inner diameter, wall thickness, and length

• Electrical stability: Suitable for high-performance sensor and connector applications

These advantages translate to longer life, fewer replacements, and reliable performance, reducing downtime and operational costs.

Comparative Edge

While stainless steel and nickel alloys can perform moderately under high temperatures, only DLX Pt-Ir tubes offer the combination of hardness, corrosion resistance, and precision needed for extreme industrial environments. Customization and tight quality control ensure that every tube fits its purpose exactly, providing engineers and industrial designers with unmatched reliability and peace of mind.

DLX’s expertise guarantees consistent quality across batches, making our tubes an essential component in high-temperature, high-precision industrial systems.

About Us:

Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.

For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.

Client Visits

Building Stronger Partnerships

We support all kinds of testing:

• What are Platinum Iridium Tubes DIN 17744?
  These tubes are precision-engineered Pt-Ir alloy tubes manufactured according to the DIN 17744 standard, ensuring uniform quality, mechanical stability, and high-temperature performance.

• What is the typical composition of these tubes?
  Common compositions include Pt90Ir10 and Pt80Ir20, combining platinum’s chemical resistance with iridium’s hardness and thermal stability.

• Why are DIN 17744 Pt-Ir tubes ideal for high-temperature industrial use?
  They maintain structural integrity, corrosion resistance, and dimensional stability even at temperatures exceeding 1000°C, making them suitable for demanding industrial applications.

• What industries use these tubes?
  Industries such as aerospace, chemical processing, power generation, and high-temperature electronics commonly use DIN 17744 Pt-Ir tubes.

• Are these tubes resistant to chemical corrosion?
  Yes. The Pt-Ir alloy provides exceptional resistance to oxidation, acids, and harsh chemicals, ensuring long-term reliability.

• Can DLX customize DIN 17744 Pt-Ir tubes?
  Yes. DLX offers custom diameters, wall thicknesses, lengths, and surface finishes tailored to specific industrial requirements.

• How do Pt-Ir tubes compare with other high-temperature alloys?
  Pt-Ir tubes outperform stainless steel, nickel, and other platinum alloys in hardness, thermal stability, corrosion resistance, and electrical conductivity.

• What are common applications for these tubes in industrial settings?
  They are used for high-temperature sensors, electrical conductors, precision fluid conduits, exhaust components, and chemical processing instruments.
