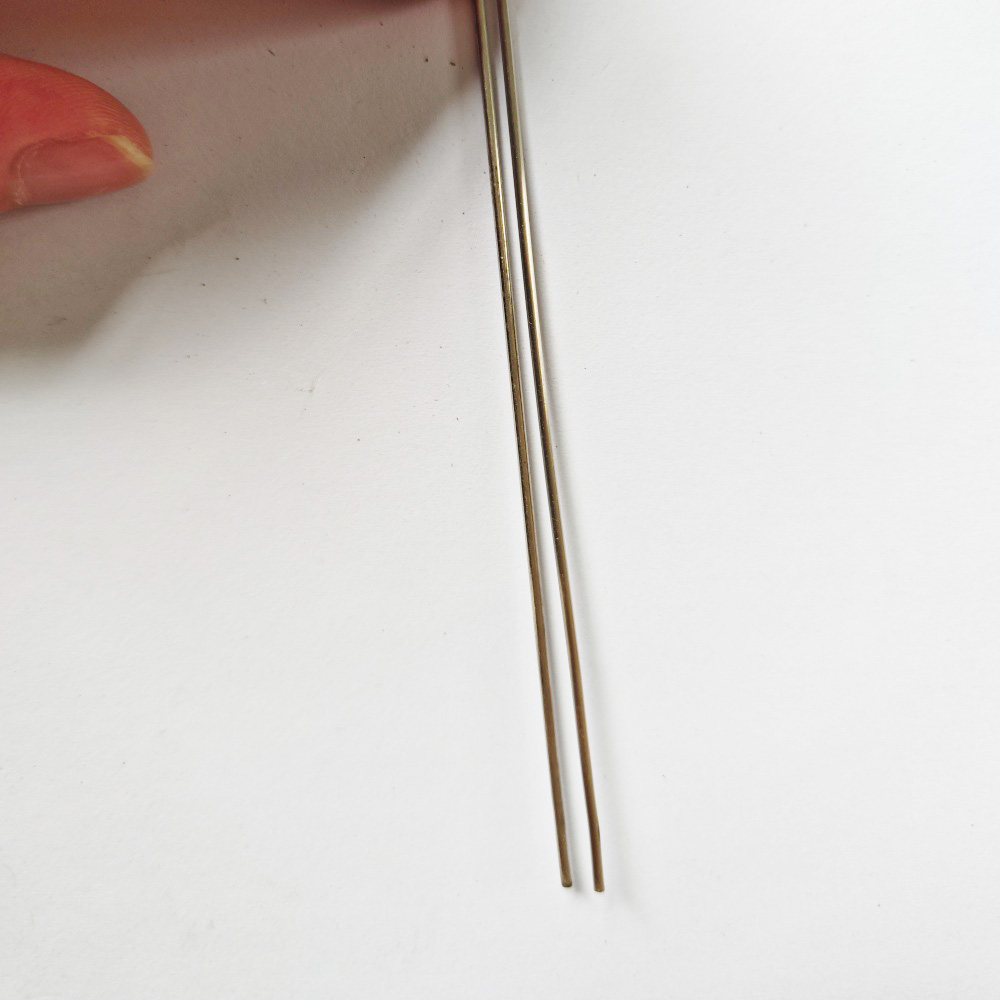

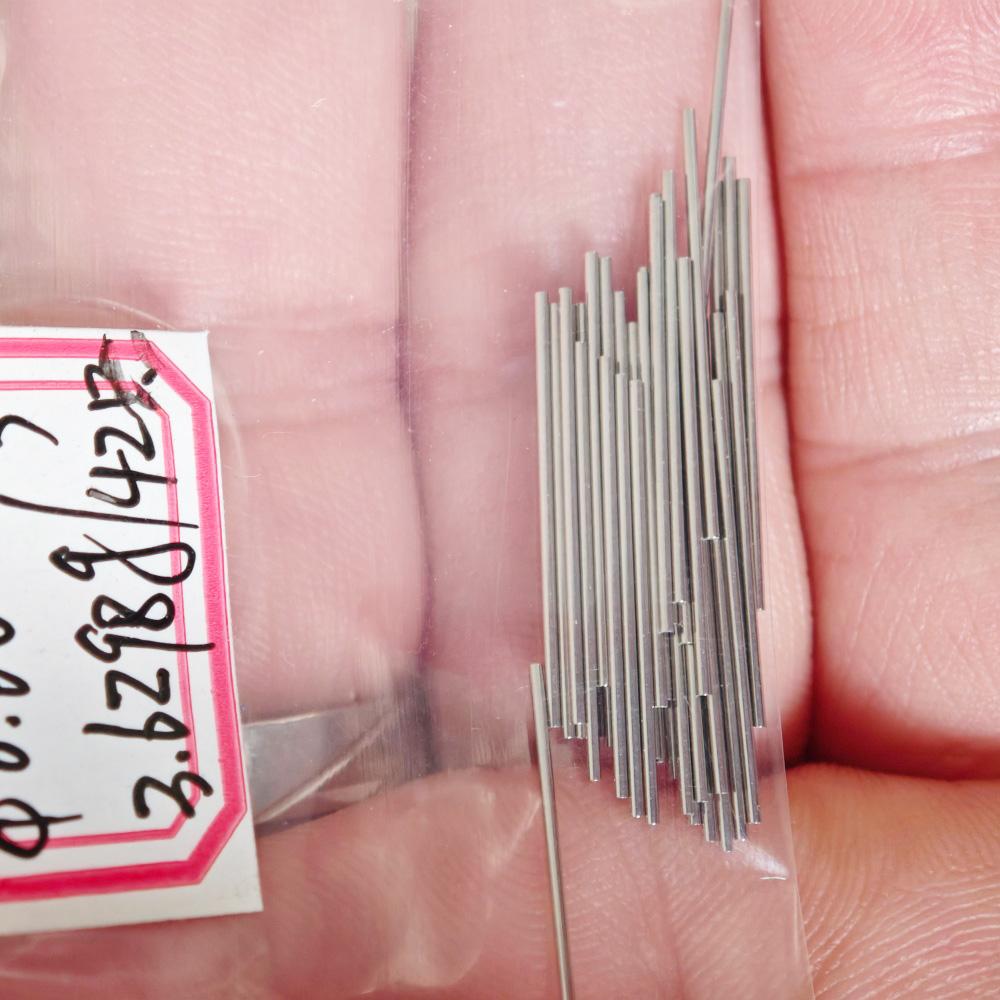

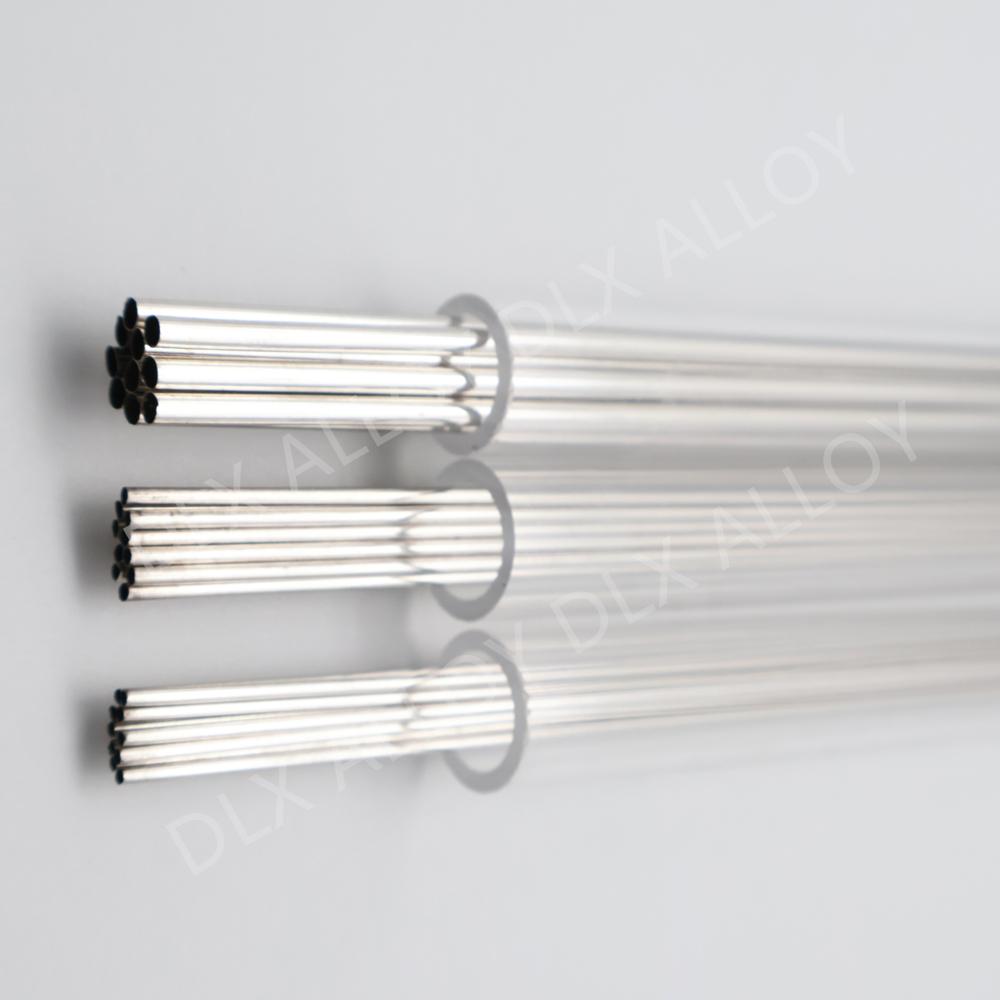

Our Corrosion-Resistant Platinum Iridium Capillary Tube is a top-tier solution for high-precision sensor applications. Crafted from PtIr5 (95% platinum, 5% iridium) or PtIr10 (90% platinum, 10% iridium), these tubes are built to withstand the toughest conditions while delivering unmatched performance. Whether you’re working on chemical sensors, medical diagnostics, or aerospace systems, our capillary tubes offer the reliability and precision you need. Let’s dive into what makes these tubes stand out, explore the industry trends driving their demand, and see how they’re applied across various sectors.
For more details, pls directly contact us.
Our Platinum Iridium Capillary Tubes are engineered for precision and durability. With a purity of 99.95%–99.99%, these tubes are designed to handle extreme conditions. The PtIr5 alloy has a melting point of 1790°C, a density of 21.49 g/cm³, and a tensile strength of 274 MPa, while the PtIr10 version steps it up with a 1800°C melting point, 21.53 g/cm³ density, and 382 MPa tensile strength. Their hardness (90 HV for PtIr5, 130 HV for PtIr10 in soft state) ensures they hold up under stress, and their electrical resistivity (19.0 µΩ·cm for PtIr5, 24.5 µΩ·cm for PtIr10 at 20°C) makes them ideal for sensor applications requiring stable conductivity.
These capillary tubes are available in ultra-fine sizes, with outer diameters as small as 0.2 mm and customizable wall thicknesses and lengths. Whether you need a tube for micro-fluid transfer in a medical sensor or a robust component for aerospace, we can tailor it to your exact specs. Our manufacturing process adheres to ASTM B684 standards, and every tube undergoes rigorous quality checks to ensure flawless performance. We package them securely in padded cartons or wooden cases to guarantee safe delivery, no matter where you are.
The corrosion resistance of our Platinum Iridium Capillary Tubes is a game-changer. They stand up to harsh chemicals, high temperatures, and even bodily fluids, making them perfect for sensitive applications. The iridium content enhances mechanical strength, giving them an edge over pure platinum or other materials like stainless steel, especially in high-precision sensor systems.
Platinum Iridium Tube Product Table
Parameter | Details |
|---|---|
Material Composition | 95% Platinum, 5% Iridium (PtIr5) |
Purity | 99.95%–99.99% |
Melting Point | 1790°C |
Density | 21.49 g/cm³ |
Hardness (Vickers) | 90 HV (soft state), 140 HV (hard state) |
Tensile Strength | 274 MPa |
Electrical Resistivity | 19.0 µΩ·cm at 20°C |
Corrosion Resistance | Excellent, resistant to strong acids, alkalis, and bodily fluids |
Biocompatibility | High, suitable for medical implants |
Standard Sizes | Outer diameter: 0.2–10 mm; Wall thickness: 0.05–1 mm; Length: Customizable |
Applications | Medical devices (pacemaker electrodes, stents), aerospace, chemical processing, precision instruments, electrical contacts, catalyst supports |
Standards Compliance | ASTM B684 |
Customization | Available for dimensions, composition (PtIr5, PtIr10), and tolerances |
For more details, pls directly contact us.
Platinum is great, but blending it with iridium makes it exceptional. The 5% or 10% iridium in our PtIr5 and PtIr10 tubes boosts strength and wear resistance, making them ideal for demanding sensor applications. Compared to stainless steel, our tubes offer superior corrosion resistance and biocompatibility, critical for medical and chemical sensors. While stainless steel is cheaper, it can’t match the precision and longevity of our platinum-iridium alloy in harsh environments. Even compared to pure platinum, our tubes provide better mechanical properties, ensuring they hold up under stress without compromising performance.
Customization is where we shine. Need a capillary tube with a specific inner diameter for a gas sensor? We’ve got you covered. Want a particular length for a medical diagnostic device? No problem. Our advanced manufacturing techniques allow us to achieve tight tolerances, ensuring every tube meets your exact requirements.
Industry Analysis
The market for platinum-iridium alloys, including our capillary tubes, is on a solid growth path. Industry estimates place the market at around $520 million in 2025, with a compound annual growth rate (CAGR) of about 6% from 2020 to 2025. The sensor industry is a key driver, with increasing demand for high-precision components in chemical, medical, and aerospace applications. The rise of IoT (Internet of Things) and smart sensors is fueling growth, as industries seek materials that can handle extreme conditions while maintaining accuracy.
In the medical sector, the shift toward minimally invasive diagnostics and wearable sensors is boosting demand for biocompatible materials like our PtIr5 and PtIr10 tubes. Aerospace is another hot spot, with sensors in jet engines and spacecraft requiring materials that can withstand high temperatures and corrosive fuels. Green technologies, like hydrogen production and environmental monitoring, are also driving demand for corrosion-resistant materials in sensor systems.
Supply chain challenges, such as the high cost of platinum and iridium, can be a hurdle, but we’ve optimized our sourcing to ensure competitive pricing and consistent availability. Advances in manufacturing, like precision drawing and laser micromachining, are making it easier to produce ultra-fine capillary tubes, aligning with our commitment to innovation. Sustainability is also a growing focus, and we’re proud to minimize waste through efficient production processes.
Applications
Our Platinum Iridium Capillary Tubes are versatile and built for precision. Here’s where they make an impact:
Chemical Sensors: Their corrosion resistance makes them ideal for sensors monitoring acids, alkalis, or gases in harsh industrial environments.
Medical Diagnostics: Used in microfluidic devices and diagnostic sensors, our tubes ensure reliable fluid transfer and biocompatibility for applications like blood analysis.
Aerospace Sensors: From fuel system sensors to temperature monitors in jet engines, our tubes handle extreme conditions with precision.
Analytical Instruments: In mass spectrometers and chromatographs, our capillary tubes enable accurate sample delivery without contamination.
Environmental Monitoring: Our tubes are used in sensors for air and water quality analysis, resisting corrosion from pollutants.
Neuromodulation Devices: Their biocompatibility and strength make them perfect for micro-electrodes in brain stimulation sensors.
Catalyst Supports: In green tech, our tubes serve as durable supports for catalysts in chemical reactions, withstanding high temperatures.
Research Applications: Scientists use our tubes in experiments requiring high-purity, corrosion-resistant materials for precise measurements.
Our Company’s Advantage
Our Corrosion-Resistant Platinum Iridium Capillary Tubes set the standard for quality and performance. We specialize in customization, offering tubes tailored to your exact specifications—whether it’s a micro-diameter for a medical sensor or a specific length for an aerospace system. Our state-of-the-art facilities use cutting-edge techniques like precision drawing and laser machining to achieve tolerances that others can’t match.
Quality is our cornerstone. Every tube complies with ASTM B684 standards and undergoes rigorous testing to ensure consistency and reliability. Our team of material scientists and engineers is always ready to provide technical support, from design to delivery. We also offer competitive pricing and fast lead times, making high-performance tubes accessible without breaking your budget.
Sustainability is part of our DNA. We source materials responsibly and optimize our processes to reduce waste, aligning with the industry’s push for greener practices. Our global supply chain ensures reliable delivery, and we package every order securely to prevent damage. Compared to others, our focus on precision, customization, and sustainability makes us the go-to choice for Platinum Iridium Capillary Tubes.
Comparison Parameters Table
Parameter | PtIr5 Capillary Tube | PtIr10 Capillary Tube | Pure Platinum Tube | Stainless Steel Tube |
|---|---|---|---|---|
Composition | 95% Pt, 5% Ir | 90% Pt, 10% Ir | 100% Pt | Fe, Cr, Ni |
Purity | 99.95%–99.99% | 99.95%–99.99% | 99.95%–99.99% | Varies |
Melting Point (°C) | 1790 | 1800 | 1772 | ~1400–1450 |
Density (g/cm³) | 21.49 | 21.53 | 21.45 | ~7.8–8.0 |
Hardness (HV, Soft) | 90 | 130 | 40–50 | ~150–200 |
Tensile Strength (MPa) | 274 | 382 | ~125–150 | ~500–700 |
Corrosion Resistance | Excellent | Excellent | Excellent | Good |
Biocompatibility | High | High | High | Moderate |
Electrical Resistivity (µΩ·cm at 20°C) | 19.0 | 24.5 | 10.6 | ~70–75 |
Applications | Sensors, medical, aerospace | Sensors, medical, aerospace | Lab equipment, electronics | General industrial, piping |
Outer Diameter Range | 0.2–5 mm | 0.2–5 mm | 0.5–10 mm | 1–50 mm |
Cost | High | Higher | Moderate | Low |
Our Corrosion-Resistant Platinum Iridium Capillary Tubes are built for the toughest sensor applications, from medical diagnostics to aerospace systems. With unmatched corrosion resistance, biocompatibility, and precision, they deliver performance you can trust. Backed by our commitment to customization, quality, and customer support, we’re here to help your project succeed. Need a capillary tube that fits your sensor perfectly? Reach out today, and let’s create something extraordinary with the best Platinum Iridium Capillary Tubes on the market.
For more details, pls directly contact us.
About Us:
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships
We support all kinds of testing:
FAQs
What is the material composition of your Platinum Iridium Capillary Tube?
Our capillary tubes are made of PtIr5 (95% platinum, 5% iridium) or PtIr10 (90% platinum, 10% iridium), with a purity of 99.95%–99.99%.What makes your capillary tubes corrosion-resistant?
The platinum-iridium alloy resists strong acids, alkalis, and harsh environments, ensuring long-term durability in sensor applications.What are the main applications of these capillary tubes?
They’re used in chemical sensors, medical diagnostics, aerospace sensors, and analytical instruments for precise fluid or gas transfer.Can you customize the dimensions of Platinum Iridium Capillary Tubes?
Yes, we offer custom outer diameters (as small as 0.2 mm), wall thicknesses, and lengths to fit specific sensor designs.How do these tubes perform in high-temperature environments?
With melting points of 1790°C (PtIr5) or 1800°C (PtIr10), they maintain stability in extreme heat, ideal for aerospace and industrial sensors.What industry trends are driving demand for these tubes?
The market is growing at a 6% CAGR, fueled by demand for high-precision sensors in medical, aerospace, and green technology sectors.How do you ensure the quality of your capillary tubes?
We comply with ASTM B684 standards, use advanced manufacturing, and perform rigorous testing to ensure precision and reliability.Why choose Platinum Iridium over other materials for sensors?
Its superior corrosion resistance, biocompatibility, and mechanical strength outperform materials like stainless steel or titanium in sensitive applications.
