ASTM B684 Compliant Platinum Iridium Tube for Electrical Contacts

Our ASTM B684 Compliant Platinum Iridium Tube is a top-tier choice for electrical contacts, delivering unmatched reliability and conductivity. Crafted from PtIr10 (90% platinum, 10% iridium) or PtIr5 (95% platinum, 5% iridium), these tubes are designed for applications where performance is critical. From electrochemical electrodes to high-reliability circuits, our tubes ensure consistent results in the toughest conditions. Let’s dive into what makes these tubes special, explore the industry trends driving their demand, and see how they’re applied across various sectors.

For more details, pls directly contact us.

Our Platinum Iridium Tubes are built for precision and durability. With a purity of 99.95%–99.99%, these tubes deliver exceptional performance. The PtIr10 alloy has a melting point of 1800°C, a density of 21.53 g/cm³, and a tensile strength of 382 MPa, while PtIr5 offers a melting point of 1790°C, a density of 21.49 g/cm³, and a tensile strength of 274 MPa. Their hardness (130 HV for PtIr10, 90 HV for PtIr5 in soft state) ensures they can handle mechanical stress, and their electrical resistivity (24.5 µΩ·cm for PtIr10, 19.0 µΩ·cm for PtIr5 at 20°C) makes them ideal for electrical contacts.

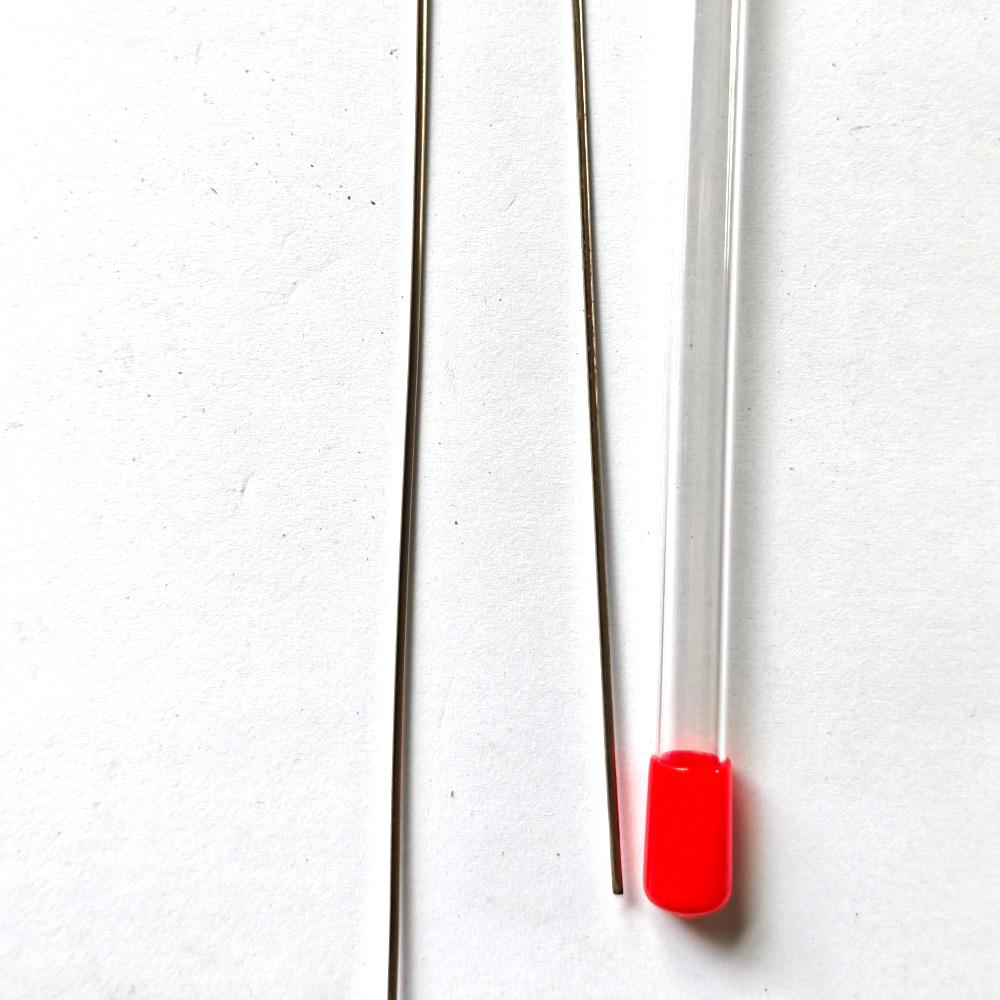

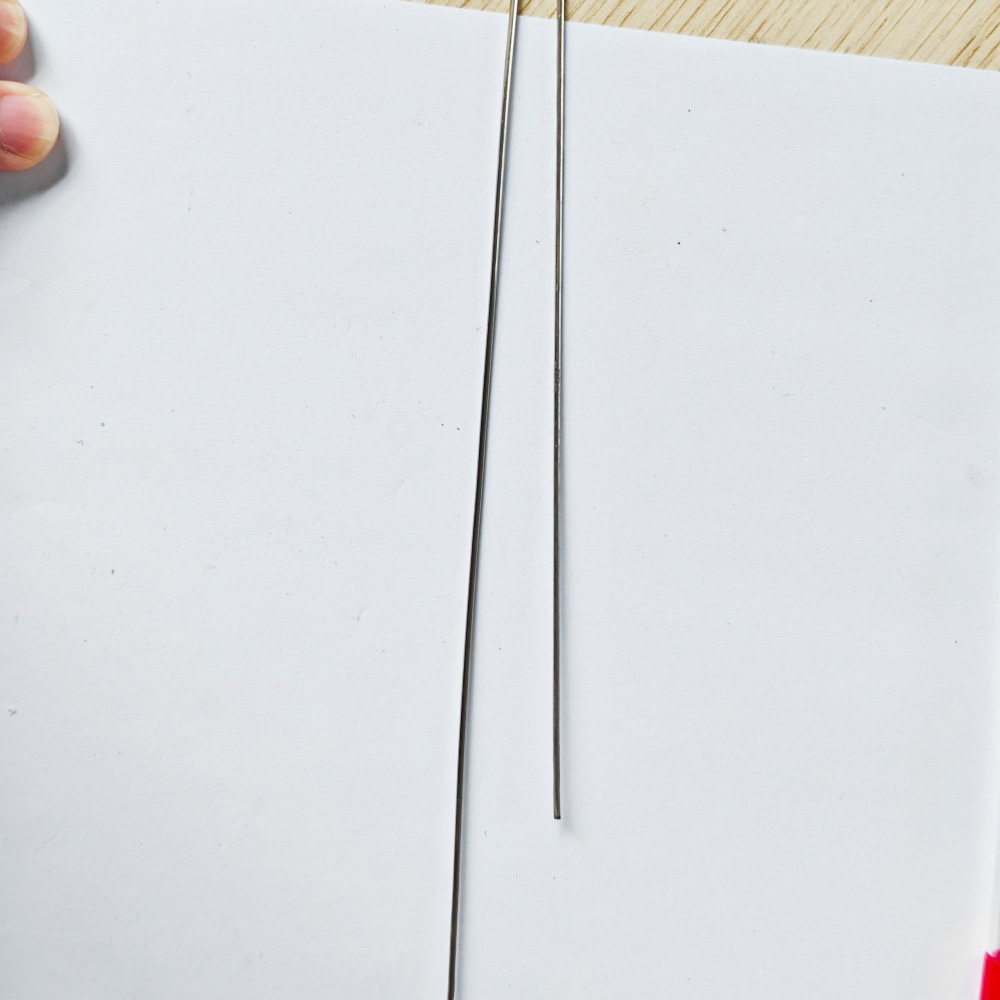

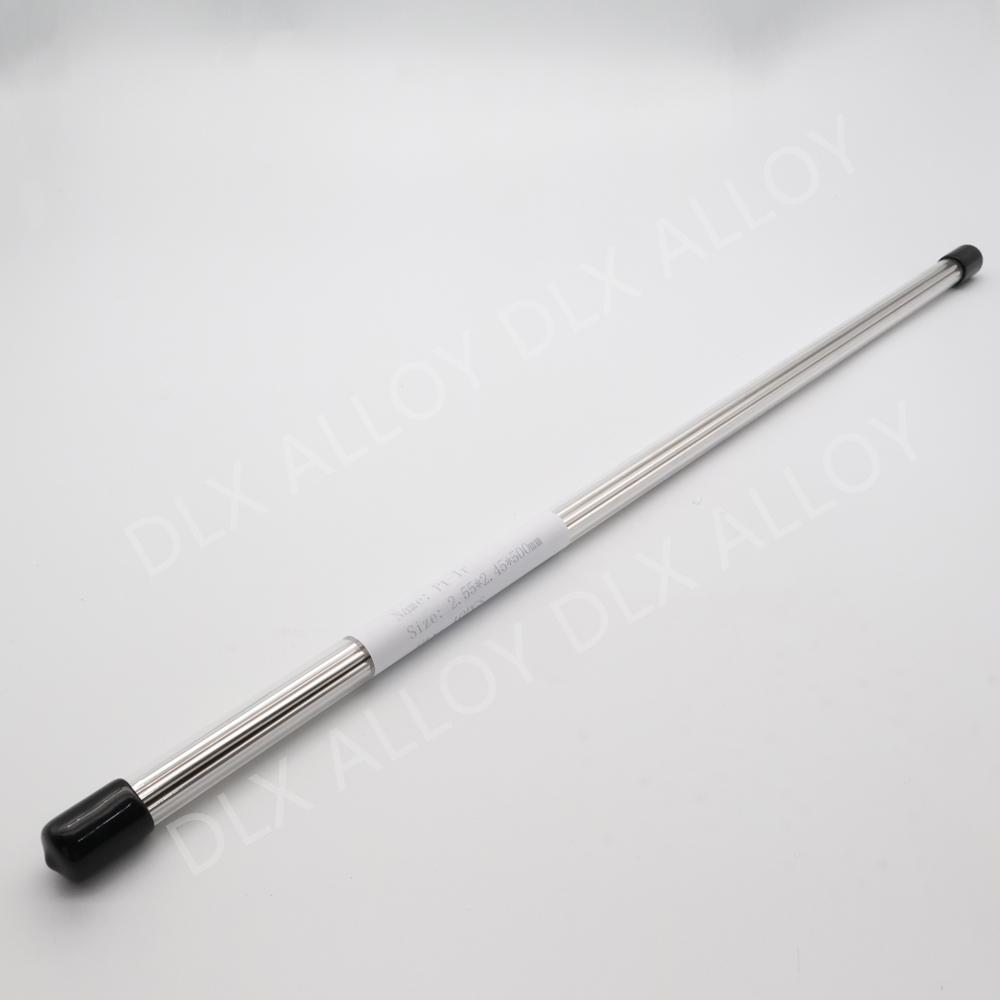

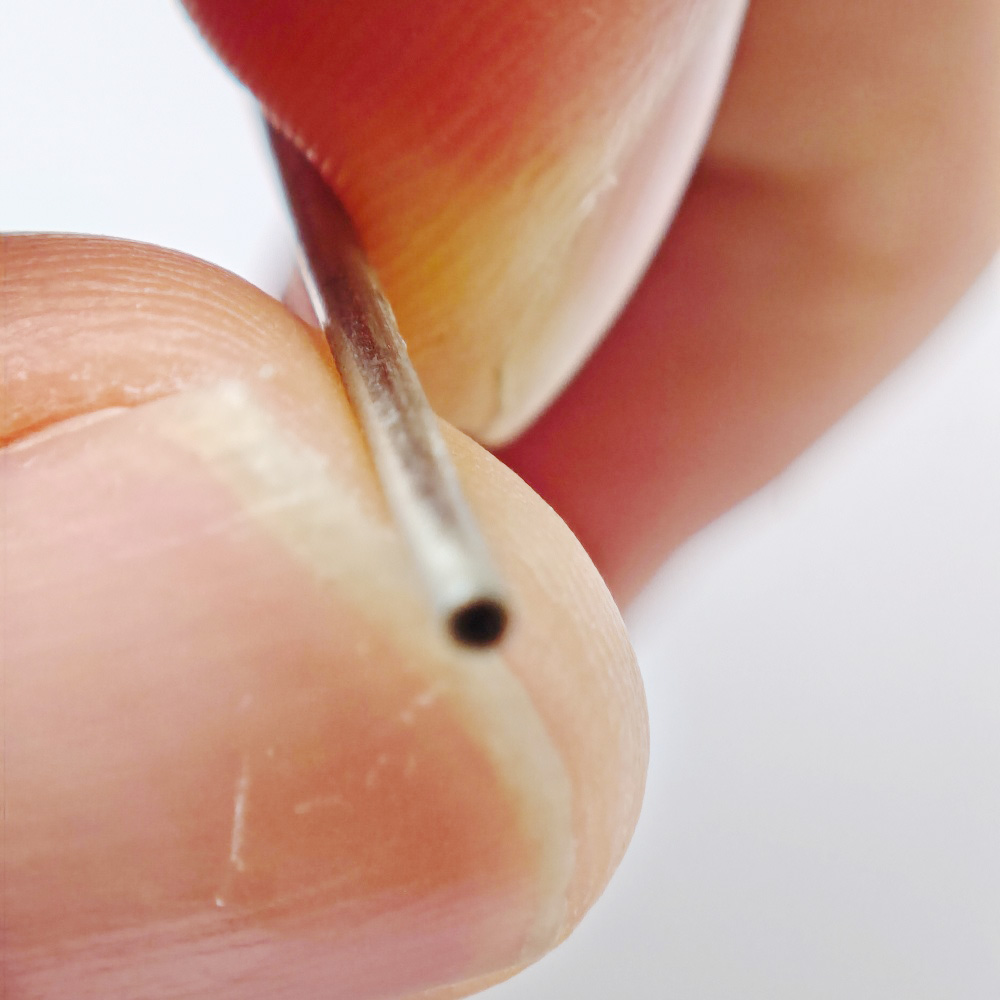

We offer these tubes in a range of forms, from capillary sizes with outer diameters as small as 0.2 mm to larger tubes for robust applications. Customization is our forte—whether you need a specific wall thickness or length, we tailor our tubes to your exact specs. Our manufacturing process complies with ASTM B684 standards, and every tube undergoes rigorous quality checks to ensure reliability and performance. We package them securely in padded cartons or wooden cases for safe delivery worldwide.

The platinum-iridium alloy’s low resistivity and corrosion resistance make it perfect for electrical contacts. The iridium content enhances strength, giving our tubes an edge over pure platinum or copper in high-reliability applications. They resist harsh chemicals and high temperatures, ensuring long-term performance in demanding environments.

Platinum Iridium Tube Product Table

For more details, pls directly contact us.

Platinum is solid, but adding iridium makes our tubes a cut above. The 10% iridium in PtIr10 boosts strength and wear resistance, while PtIr5 offers a slightly softer, more flexible option. Both alloys outperform copper in corrosion resistance, critical for electrical contacts exposed to harsh conditions. Compared to stainless steel, our tubes provide better conductivity and durability, making them ideal for high-stakes applications like electrochemical electrodes. While copper is cheaper and highly conductive, it corrodes easily, whereas our platinum-iridium tubes deliver long-term reliability.

Customization sets us apart. Need a capillary tube for a sensor electrode? We can make it happen. Want a specific length for a circuit component? No problem. Our advanced manufacturing techniques, like precision drawing and laser machining, ensure tight tolerances that meet the strictest industry standards.

Industry Analysis

The market for platinum-iridium alloys, including our tubes, is thriving. Industry estimates value the market at around $570 million in 2025, with a compound annual growth rate (CAGR) of about 6.3% from 2020 to 2025. The electronics industry is a key driver, as demand for high-reliability electrical contacts grows in applications like aerospace, medical devices, and green technologies. The rise of renewable energy systems, such as fuel cells and electrochemical sensors, is increasing the need for corrosion-resistant, conductive materials.

Medical and chemical sectors also contribute to market growth. Platinum-iridium alloys are used in biocompatible electrodes and chemical sensors, while aerospace applications rely on their durability for high-temperature circuits. Emerging trends, like IoT (Internet of Things) devices and advanced sensor technologies, are creating new opportunities for our tubes in precision electronics.

Supply chain challenges, like the high cost of platinum and iridium, can be a hurdle, but we’ve optimized our sourcing to ensure competitive pricing and consistent availability. Advances in manufacturing, such as high-precision extrusion and alloy processing, allow us to produce customized tubes with exceptional accuracy. Sustainability is a growing focus, and we’re committed to minimizing waste through efficient production processes.

Applications

Our Platinum Iridium Tubes are versatile and built for high-performance electrical applications. Here’s where they shine:

• Electrical Contacts: Their low resistivity and durability make them ideal for high-reliability contacts in circuits and switches.

• Electrochemical Electrodes: Used in electrochemical setups, our tubes resist corrosion and ensure stable conductivity.

• Chemical Sensors: Their corrosion resistance makes them perfect for sensors monitoring acids, alkalis, or gases.

• Aerospace Circuits: In jet engines and spacecraft, our tubes handle high temperatures and corrosive environments.

• Medical Devices: Their biocompatibility makes them suitable for electrodes in pacemakers and neuromodulation devices.

• Catalyst Supports: In green tech, our tubes serve as durable supports for catalysts in electrochemical reactions.

• Analytical Instruments: Used in spectrographs and mass spectrometers, our tubes ensure contamination-free sample delivery.

• Research Applications: Scientists rely on our tubes for experiments requiring high-purity, corrosion-resistant materials.

Comparison Parameters Table

Our ASTM B684 Compliant Platinum Iridium Tubes are designed to outperform, and we’re proud to lead the industry. Customization is our strength—whether it’s a specific diameter, wall thickness, or alloy composition, we tailor our tubes to your exact needs. Our state-of-the-art facilities use cutting-edge techniques like precision extrusion and laser machining to achieve tolerances that meet the toughest electrical standards.

Quality is our cornerstone. Every tube complies with ASTM B684 standards and undergoes rigorous testing to ensure consistency, reliability, and performance. Our team of material scientists and engineers is always available to provide technical support, from design to delivery. We also offer competitive pricing and fast lead times, making high-performance tubes accessible without breaking your budget.

Sustainability is part of our DNA. We source materials responsibly and optimize our processes to reduce waste, aligning with the industry’s push for greener practices. Our global supply chain ensures reliable delivery, and we package every order securely to prevent damage. Compared to others, our focus on customization, quality, and sustainability makes us the top choice for platinum-iridium tubes.

Why Choose Our Platinum Iridium Tubes?

Our ASTM B684 Compliant Platinum Iridium Tubes are built for electrical contacts that demand reliability and precision. With superior conductivity, corrosion resistance, and customization options, they deliver top-tier performance for circuits, sensors, and more. Backed by our commitment to quality, innovation, and customer support, we’re here to help your project succeed. Need a tube that fits your electrical contact needs perfectly? Reach out today, and let’s create something extraordinary with the best platinum-iridium tubes on the market.

For more details, pls directly contact us.

About Us:

Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.

For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.

Client Visits

Building Stronger Partnerships

We support all kinds of testing:

FAQs

1. What is the composition of your Platinum Iridium Tube for electrical contacts?
   Our tubes are made of PtIr10 (90% platinum, 10% iridium) or PtIr5 (95% platinum, 5% iridium), with a purity of 99.95%–99.99%.

2. What makes these tubes suitable for electrical contacts?
   Their low electrical resistivity, high corrosion resistance, and durability ensure reliable conductivity in demanding applications.

3. What are the main applications of these tubes?
   They’re used in electrical contacts, electrochemical electrodes, sensors, and high-reliability circuits.

4. Can you customize Platinum Iridium Tubes for electrical contacts?
   Yes, we offer custom diameters, wall thicknesses, and lengths to meet specific electrical contact requirements.

5. How do these tubes perform in harsh environments?
   They resist corrosion from acids, alkalis, and high temperatures, ensuring long-term performance in tough conditions.

6. What industry trends are driving demand for these tubes?
   The market is growing at a 6.3% CAGR, driven by demand for high-reliability electronics and green technology applications.

7. How do you ensure compliance with ASTM B684 standards?
   We use advanced manufacturing and rigorous testing to meet ASTM B684 standards for quality and performance.

8. Why choose Platinum Iridium over other materials for electrical contacts?
   Its superior conductivity, corrosion resistance, and strength outperform materials like copper or stainless steel in critical applications.
