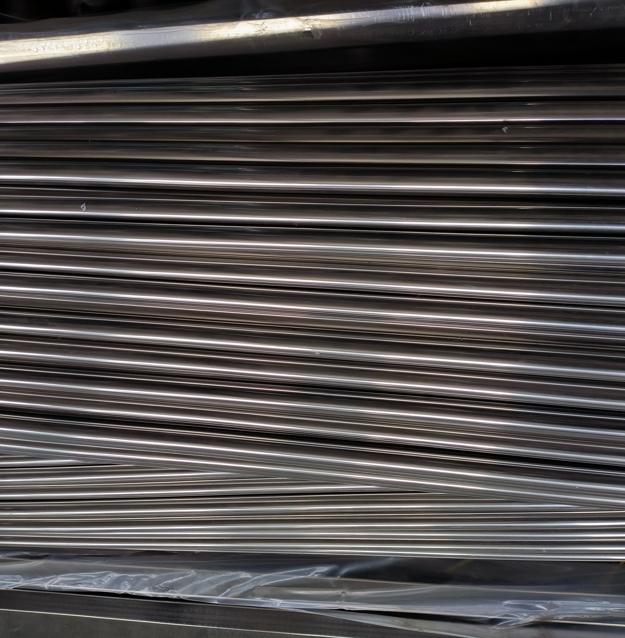

For transformer cores that need to perform without wasting energy, our High-Permeability 1J50 Soft Magnetic Alloy Tube at DLX is the perfect fit. This nickel-iron alloy tube is designed for top-notch efficiency in magnetic applications like transformers, relays, and shielding. It’s reliable, high-performing, and built to handle the demands of industries like electronics and power generation. Let’s break down what makes our 1J50 tube stand out, explore its applications, dive into industry trends, and see why DLX is the best choice for your magnetic alloy needs.
For more details, pls directly contact us.
Our 1J50 soft magnetic alloy tube is made from a nickel-iron alloy with 45-50% nickel and the rest iron, delivering high initial permeability and low coercivity. That’s a fancy way of saying it’s great at channeling magnetic fields efficiently, which is key for transformer cores. It operates smoothly from -60°C to 400°C, making it versatile for everything from power plants to compact electronics.
We offer the 1J50 tube in a range of diameters and wall thicknesses, with optional coatings to enhance durability in tougher environments. Every tube is tested to meet standards like GB/T 14986, ensuring consistent magnetic performance. With low hysteresis loss and decent corrosion resistance, it’s a reliable choice for applications where energy efficiency matters. Whether you’re building transformers or magnetic sensors, our 1J50 tube keeps things running smoothly.
Alloy Grades | C | S | P | Mn | Si | Ni | Cr | Co | Mo | Cu | Al | Nb | Fe | Other Elements |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1J06 | 0.04 | 0.015 | 0.015 | ≤0.10 | ≤0.15 | - | - | - | - | - | 5.5-6.5 | - | Rest | - |
1J12 | 0.03 | 0.015 | 0.015 | ≤0.10 | ≤0.15 | - | - | - | - | - | 11.6-12.4 | - | Rest | - |
1J17 | 0.03 | 0.02 | 0.02 | ≤0.60 | ≤0.20 | - | 15.5-16.5 | - | - | - | - | - | Rest | - |
1J18 | 0.03 | 0.02 | 0.02 | 0.3-0.7 | ≤0.15 | 0.5-0.7 | 17-18.5 | - | - | - | - | - | Rest | Ti: 0.3-0.7 |
1J22 | 0.04 | 0.02 | 0.02 | ≤0.3 | ≤0.3 | ≤0.5 | - | 49-51 | - | ≤0.2 | - | - | Rest | V: 0.8-1.8 |
1J30 | 0.04 | 0.02 | 0.02 | ≤0.40 | ≤0.30 | 29.5-30.5 | - | - | - | - | - | - | Rest | - |
1J36 | 0.03 | 0.02 | 0.02 | ≤0.60 | ≤0.20 | 35.0-37.0 | - | - | - | - | - | - | Rest | - |
1J38 | 0.03 | 0.05 | 0.02 | 0.3-0.6 | 0.15-0.3 | 37.5-38.5 | 12.5-13.5 | - | - | - | - | - | Rest | - |
1J46 | 0.03 | 0.02 | 0.02 | 0.6-1.1 | 0.15-0.3 | 45.0-46.5 | - | - | - | ≤0.2 | - | - | Rest | - |
1J50 | 0.03 | 0.02 | 0.02 | 0.3-0.6 | 0.15-0.3 | 49-50.5 | - | - | - | ≤0.2 | - | - | Rest | - |
1J51 | 0.03 | 0.02 | 0.02 | 0.3-0.6 | 0.15-0.3 | 49-50.5 | - | - | - | ≤0.2 | - | - | Rest | - |
1J54 | 0.03 | 0.02 | 0.02 | 0.3-0.6 | 1.1-1.4 | 49.5-51 | 3.8-4.2 | - | - | ≤0.2 | - | - | Rest | - |
1J76 | 0.03 | 0.02 | 0.02 | 0.3-0.6 | 0.15-0.3 | 75.0-76.5 | 1.8-2.2 | - | - | 4.8-5.2 | - | - | Rest | - |
1J77 | 0.03 | 0.02 | 0.02 | 0.3-0.6 | 0.15-0.3 | 75.5-78 | - | - | 3.9-4.5 | 4.8-6.0 | - | - | Rest | - |
1J79 | 0.03 | 0.02 | 0.02 | 0.6-1.10 | 0.3-0.5 | 78.5-80.0 | - | - | 3.8-4.1 | ≤0.2 | - | - | Rest | - |
1J80 | 0.03 | 0.02 | 0.02 | 0.6-1.10 | 1.1-1.5 | 79.0-81.5 | 2.6-3.0 | - | - | ≤0.2 | - | - | Rest | - |
1J85 | 0.03 | 0.02 | 0.02 | 0.3-0.60 | 0.15-0.3 | 79.0-81.0 | - | - | 4.8-5.2 | ≤0.2 | - | - | Rest | - |
1J87 | 0.03 | 0.02 | 0.02 | 0.3-0.6 | ≤0.3 | 78.5-80.5 | - | - | 1.6-2.2 | - | - | 6.5-7.5 | Rest | - |
For more details, pls directly contact us.
The soft magnetic alloy market is growing strong, with projections showing steady expansion through 2030. Electronics, power generation, and automotive industries are driving demand for materials that boost efficiency and reduce energy loss. Alloys like 1J50 are popular because they offer high permeability for transformer cores and relays, making them critical for energy-efficient systems.
Trends like energy conservation and device miniaturization are shaping the market. Companies want lightweight, high-performance materials for smaller, smarter devices. The rise of Industry 4.0 is also pushing for components that work with digital systems for real-time monitoring and automation. At DLX, we’re keeping up by offering customizable 1J50 tubes and exploring innovations like advanced coatings to meet these evolving demands.
Comparison Table
Parameter | 1J50 Alloy Tube | 1J36 Alloy Tube | 1J79 Alloy Tube |
|---|---|---|---|
Composition | Ni 45-50%, Fe balance | Ni 35-37%, Cr 0.3-0.7%, Fe balance | Ni 78.5-80%, Mo 3.8-4.1%, Fe balance |
Magnetic Permeability | High | Constant, moderate | Very high |
Temperature Range | -60°C to 400°C | -60°C to 400°C | -60°C to 400°C |
Coercivity | Moderate | Low | Very low |
Corrosion Resistance | Moderate | Good, moderate environments | Excellent, with Mo addition |
Applications | Transformers, magnetic shielding | Variable transformers, choke coils | Magnetic amplifiers, shielding |
Cost | Moderate | Cost-effective | Higher due to Mo content |
Best Use Case | General-purpose magnetic cores | Precision instruments, stable permeability | High-sensitivity magnetic devices |
Our 1J50 alloy tube is a rockstar in magnetic applications. In power generation, it’s used in transformer cores to maximize energy transfer, cutting losses in electrical grids. Electronics manufacturers use it in relays and electromagnetic clutches, where high permeability ensures reliable performance. Telecommunications
For more details, pls directly contact us.
About Us:
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
Client Visits
Building Stronger Partnerships
We support all kinds of testing:
FAQs
What is the 1J50 soft magnetic alloy tube?
It’s a high-permeability tube made from a nickel-iron alloy (Ni 45-50%, Fe balance) designed for efficient transformer cores and magnetic components.What are the main applications of 1J50 alloy tube?
It’s used in transformers, relays, electromagnetic clutches, magnetic shielding, and low-frequency amplifiers.What temperature range can the 1J50 alloy tube handle?
It performs reliably from -60°C to 400°C, fitting a wide range of industrial conditions.Why is 1J50 ideal for transformer cores?
Its high magnetic permeability and low coercivity ensure efficient energy transfer with minimal power loss.Which industries rely on 1J50 alloy tube?
Electronics, power generation, telecommunications, and automotive industries use it for magnetic applications.What are the key properties of 1J50 alloy?
High initial permeability, low hysteresis loss, and moderate corrosion resistance for reliable performance.Can the 1J50 alloy tube be customized?
Yes, it comes in various diameters, wall thicknesses, and optional protective coatings for specific needs.What benefits does 1J50 offer for transformer applications?
It boosts efficiency, cuts energy loss, and provides long-lasting reliability in magnetic systems.
