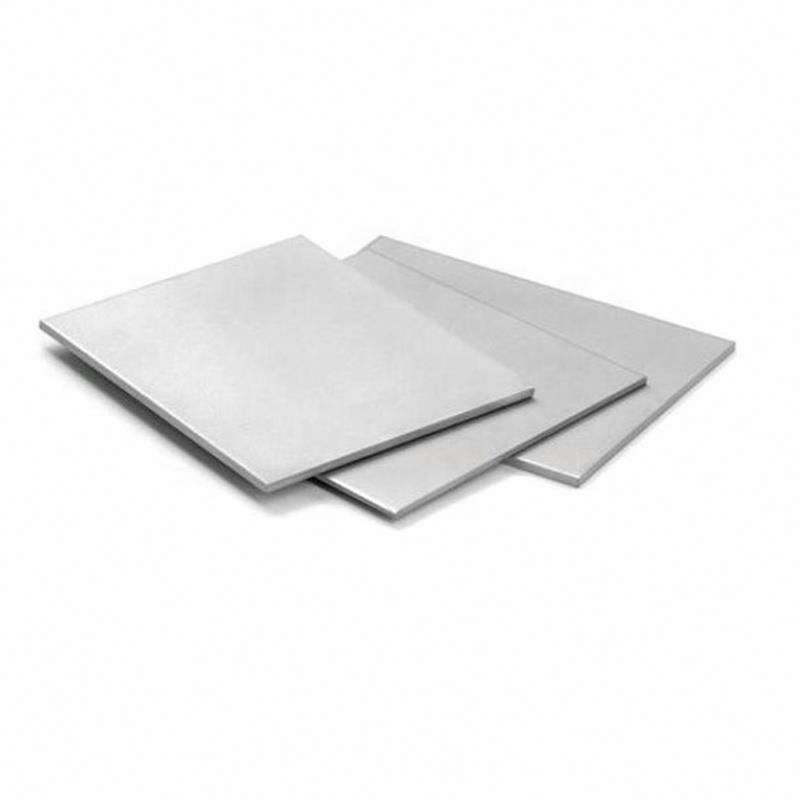

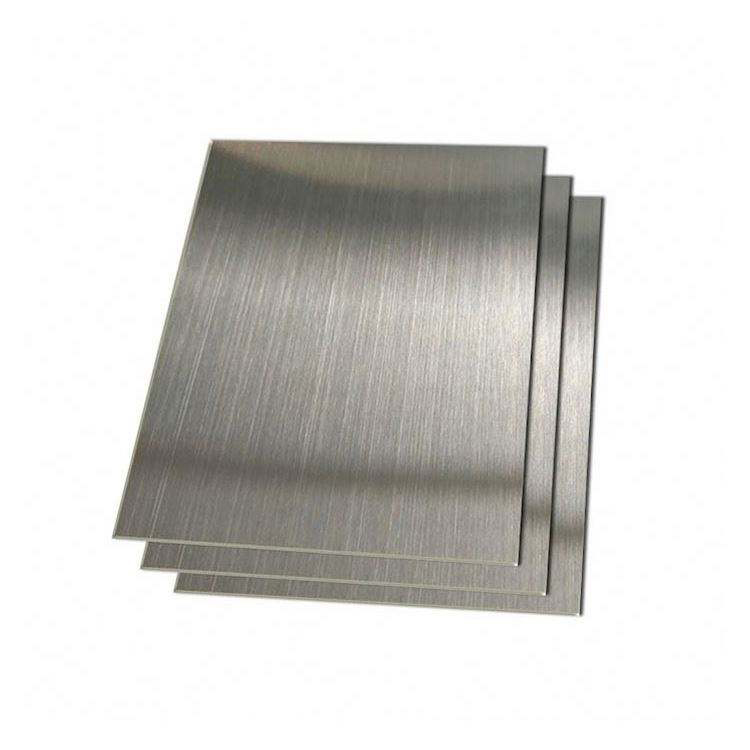

1J75 Nickel-Iron Plate: Reliable for High-Frequency Inductor Cores

1J75 Nickel-Iron Plate: Reliable for High-Frequency Inductor Cores

Brand Name:DLX   Place of Origin:China Jiangsu    Delivery Time:7-15 Days
Certification:CE,ROHS   Supply Ability:500 tons per month
Payment Terms:L/C,T/T,Western Union,MoneyGram

Classification：
Message inquiry

Product Introduction

Our 1J75 Nickel-Iron Plate is a high-performance Soft Magnetic Alloy tailored for high-frequency inductor cores and other precision applications. With approximately 75% nickel, balanced with iron and minor additives, this alloy delivers exceptional magnetic permeability (up to 0.1 H/m) and ultra-low core losses. It’s a reliable choice for compact, high-efficiency components like inductors, transformers, and magnetic shields, ensuring top-notch performance in demanding high-frequency environments.

The soft magnetic materials market is growing fast, driven by the boom in high-frequency electronics, telecommunications, and renewable energy systems. As devices trend toward smaller sizes and higher efficiency, alloys like 1J75 are in high demand for their ability to minimize energy loss in high-frequency applications. Market projections show robust growth through 2030, with electronics, telecom, and automotive sectors leading the charge. We tackle challenges like processing precision with advanced vacuum melting and controlled annealing, ensuring our plates meet the highest standards for performance and reliability.

Alloy Composition Table

Alloy Grades

C

S

P

Mn

Si

Ni

Cr

Co

Mo

Cu

Al

Nb

Fe

Other Elements

1J06

0.04

0.015

0.015

≤0.10

≤0.15

-

-

-

-

-

5.5-6.5

-

Rest

-

1J12

0.03

0.015

0.015

≤0.10

≤0.15

-

-

-

-

-

11.6-12.4

-

Rest

-

1J17

0.03

0.02

0.02

≤0.60

≤0.20

-

15.5-16.5

-

-

-

-

-

Rest

-

1J18

0.03

0.02

0.02

0.3-0.7

≤0.15

0.5-0.7

17-18.5

-

-

-

-

-

Rest

Ti: 0.3-0.7

1J22

0.04

0.02

0.02

≤0.3

≤0.3

≤0.5

-

49-51

-

≤0.2

-

-

Rest

V: 0.8-1.8

1J30

0.04

0.02

0.02

≤0.40

≤0.30

29.5-30.5

-

-

-

-

-

-

Rest

-

1J36

0.03

0.02

0.02

≤0.60

≤0.20

35.0-37.0

-

-

-

-

-

-

Rest

-

1J38

0.03

0.05

0.02

0.3-0.6

0.15-0.3

37.5-38.5

12.5-13.5

-

-

-

-

-

Rest

-

1J46

0.03

0.02

0.02

0.6-1.1

0.15-0.3

45.0-46.5

-

-

-

≤0.2

-

-

Rest

-

1J50

0.03

0.02

0.02

0.3-0.6

0.15-0.3

49-50.5

-

-

-

≤0.2

-

-

Rest

-

1J51

0.03

0.02

0.02

0.3-0.6

0.15-0.3

49-50.5

-

-

-

≤0.2

-

-

Rest

-

1J54

0.03

0.02

0.02

0.3-0.6

1.1-1.4

49.5-51

3.8-4.2

-

-

≤0.2

-

-

Rest

-

1J76

0.03

0.02

0.02

0.3-0.6

0.15-0.3

75.0-76.5

1.8-2.2

-

-

4.8-5.2

-

-

Rest

-

1J77

0.03

0.02

0.02

0.3-0.6

0.15-0.3

75.5-78

-

-

3.9-4.5

4.8-6.0

-

-

Rest

-

1J79

0.03

0.02

0.02

0.6-1.10

0.3-0.5

78.5-80.0

-

-

3.8-4.1

≤0.2

-

-

Rest

-

1J80

0.03

0.02

0.02

0.6-1.10

1.1-1.5

79.0-81.5

2.6-3.0

-

-

≤0.2

-

-

Rest

-

1J85

0.03

0.02

0.02

0.3-0.60

0.15-0.3

79.0-81.0

-

-

4.8-5.2

≤0.2

-

-

Rest

-

1J87

0.03

0.02

0.02

0.3-0.6

≤0.3

78.5-80.5

-

-

1.6-2.2

-

-

6.5-7.5

Rest

-

For more details, pls directly  contact us.

Our 1J75 Nickel-Iron Plate is a versatile solution for critical high-frequency applications:

  • High-Frequency Inductors: Ultra-low core losses ensure efficient energy transfer in compact power electronics.

  • Transformers: High permeability supports high-frequency transformer designs with minimal energy loss.

  • Magnetic Shielding: Protects sensitive telecom and medical devices from electromagnetic interference.

  • Renewable Energy Systems: Enhances efficiency in inverters and converters for solar and wind energy.

  • Precision Sensors: High magnetic sensitivity enables accurate field detection in industrial and automotive systems.

Our 1J75 Nickel-Iron Plate sets the industry standard. Using advanced vacuum induction melting and precision annealing, we achieve superior magnetic permeability and minimal core losses. We offer fully customizable plate sizes and thicknesses, tailored to your needs, with lead times as short as 15 days. Our ISO 9001-certified quality control ensures every plate is consistent and reliable. Our R&D team continuously optimizes the alloy for better workability and thermal stability, and we provide free samples (shipping costs apply) with exceptional customer support to keep your projects on track.

Comparison Table

Parameter

Our 1J75 Nickel-Iron Plate

Competitor Alloy

Magnetic Permeability

0.1 H/m

0.05-0.08 H/m

Coercive Force

0.05 Oe

0.1-0.3 Oe

Core Loss

Ultra-low (high-frequency optimized)

Moderate

Curie Temperature

400°C

350-380°C

Yield Strength

280-340 MPa

250-320 MPa

Processing

Vacuum melting, custom sizes

Standard processing

Lead Time

15-20 days

25-35 days

Quality Certification

ISO 9001

Varies

Why Choose Our 1J75 Nickel-Iron Plate?

Our 1J75 Nickel-Iron Plate is built for reliability, delivering unmatched magnetic performance and low core loss for high-frequency inductor cores. With decades of expertise, we’ve perfected our production process to offer a cost-effective, high-quality solution. Whether you’re designing cutting-edge inductors or shielding sensitive electronics, our plates provide the precision and efficiency you need. Contact us today to see how our 1J75 Nickel-Iron Plate can power your high-frequency projects!

About Us:

Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications.

For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.

Incoloy 800 Plate for High-Temperature Furnace Corrosion Resistance

Client Visits

Building Stronger Partnerships

Incoloy 800 Plate for High-Temperature Furnace Corrosion Resistance

We support all kinds of testing:

Incoloy 800 Plate for High-Temperature Furnace Corrosion Resistance

Incoloy 800 Plate for High-Temperature Furnace Corrosion Resistance

FAQs:

  1. What is 1J75 Nickel-Iron Plate made of?
    It’s a nickel-iron alloy with ~75% nickel, iron, and minor additives, optimized for high permeability and low core loss.

  2. What are the key properties of 1J75?
    It offers high permeability (0.1 H/m), low coercive force (0.05 Oe), and ultra-low core losses for high-frequency applications.

  3. Which industries use 1J75 Nickel-Iron Plates?
    Electronics, telecommunications, renewable energy, automotive, and medical sectors rely on it for inductors and shielding.

  4. Is 1J75 suitable for high-frequency applications?
    Yes, its ultra-low core losses make it ideal for high-frequency inductors and transformers.

  5. What forms do you offer for 1J75?
    We supply plates, sheets, strips, and custom shapes to match your specifications.

  6. How does 1J75 improve inductor efficiency?
    Its high permeability and low losses enable compact, high-efficiency inductor designs with minimal energy waste.

  7. Can it be used for magnetic shielding?
    Absolutely, its high permeability effectively redirects magnetic fields to protect sensitive electronics.

  8. How can I request a sample?
    Contact us for a free sample (buyer covers shipping), typically delivered within 15 days of payment.
